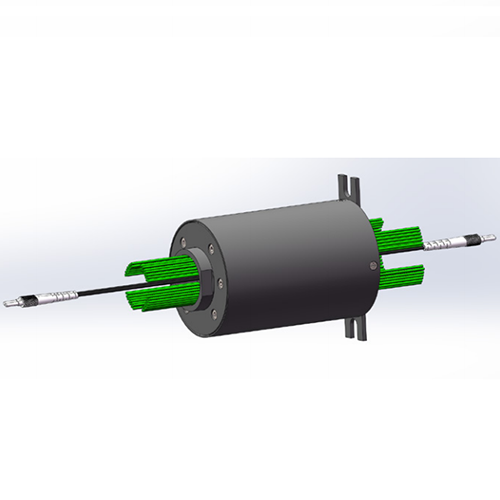

HXZ-85-mXnG Electro-Optical Slip Ring

Product Introduction

This slip ring has a modular design, with 1-48 electric slip rings and 2-12 optical slip rings. It has a compact design, a main body diameter of only 85mm, and is easy to install. It has mixed transmission of photoelectric signals and can adapt to harsh environments. Precious metal friction pairs, long lasting.

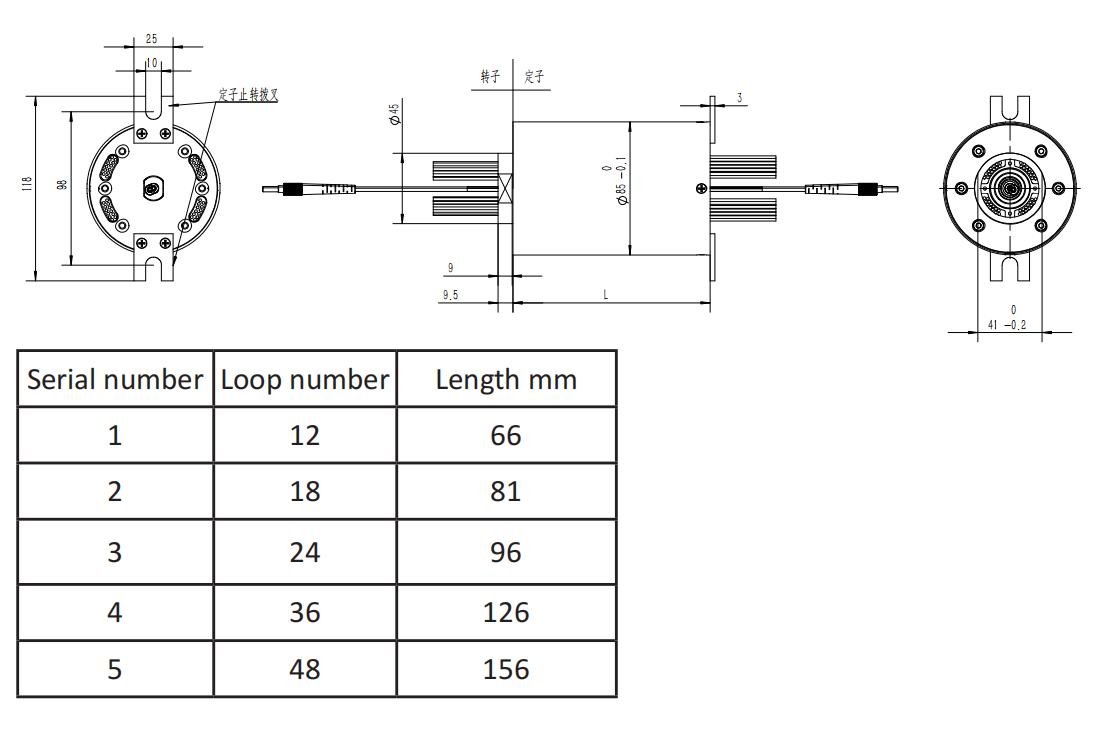

Main Technical Performance

Electrical parameters
Loop number	1 ～ 48	Contact resistance fluctuation value	≤20mΩ
Operating current	10A or higher	Electrical contact material	Precious metals
Operating voltage	220VAC	Shell material	Aluminum alloy
Insulation resistance	≥500MΩ@500VDC	Wire specifications	AWG17 Teflon Wire
Dielectric strength	500VAC@50Hz，60s	Length of the conductor	Rotor 500mm / Stator 500mm or as specified by the customer
Optical parameters
Number of paths	2 ～ 12	Maximum optical power	0.5W
Fiber optic type	Single mode or multimode	Fiber optic package	2.0 Armor
Work wavelength	1310nm/1550nm (SM) 850nm (MM)	Connector type	FC/SC/LC/ST
Insertion loss	≤24dB	End face type	PC/UPC/APC
Change in insertion loss	≤2dB	Fiber optic length	Rotor 500mm / Stator 500mm or as specified by the customer
Return loss	≥ 40dB (SM) ≥ 20dB (MM)
Interference	≥50dB
Mechanical parameters
Operating temperature		-30℃～ 80℃ or as specified by the customer.
Storage temperature		-35℃～ 85℃ or as specified by the customer.
Work humidity		≤80%RH
Protection level		IP54
Work speed		200rpmor higher
Working life		100 million or more
