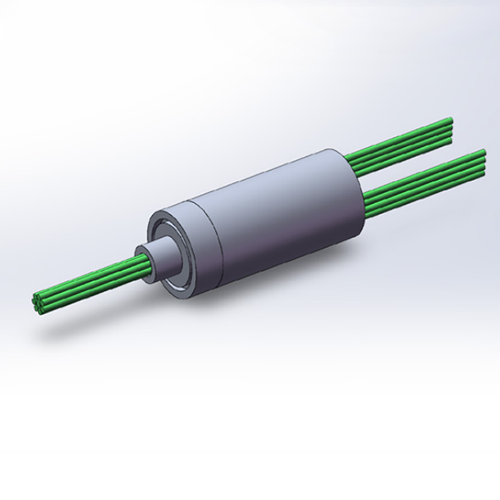

HXZ-5.5-8X Conductive Slip Ring

Product Introduction

This slip ring features a modular design with 8 circuits. It has a compact structure with a main body diameter of only 5.5mm, making it easy to install and suitable for harsh environments. The use of precious metal friction pairs ensures a long service life.

Main Technical Performance

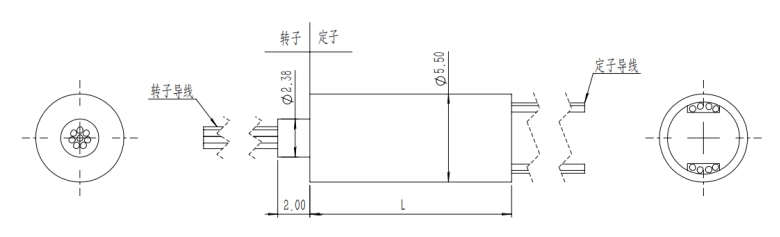

Specifications Sheet
Model	Circuits		Length		Main Body Outer Diameter
HXZ-5.5-8X	8		12.6		5.5
Electrical Parameters
Operating Voltage			48V AC/DC
Contact Resistance Variation			≤15mΩ(at 50rpm)
Dielectric Strength			≥100VAC@50Hz
Insulation Resistance			≥100MΩ@100VDC
Wire Specifications			Ø0.65-AWG28 silver-plated Teflon wires
Wire Length			Rotor:250±5mm Stator:250±5mm
Mechanical Parameters
Operating Temperature			-20℃～ +65℃
Operating Humidity			≤60%RH
Protection Level			IP40
Operating Speed			0 ～ 100rpm
Service Life			≥1 million revolutions
Conductive Contact Materiall			Precious metals
Housing Material			Stainless steel
Other Requirements			Full inspection
Wire Specifications and Color Code Table
Model	Color Code
HXZ-5.5-8X	1.Black	2. Brown	3. Red	4. Orange		5. Yellow	6. Green
	7. Blue	8. Purple
