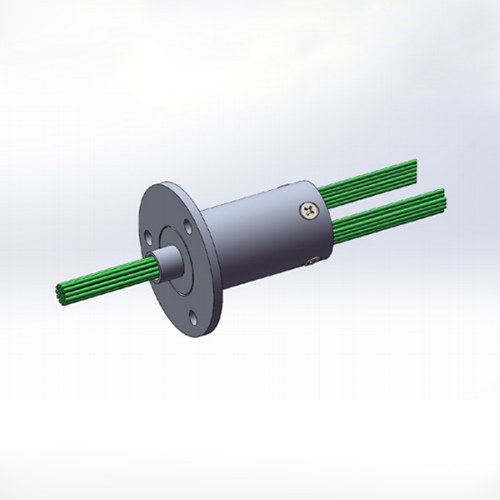

HXZ-12.4 Conductive Slip Ring

Product Introduction

This slip ring features a modular design with 4 to 18 circuits. It has a compact structure with a main body diameter of only 12.4 mm, making it easy to install and suitable for harsh environments. The use of precious metal friction pairs ensures a long service life.

Main Technical Performance

Specifications Sheet

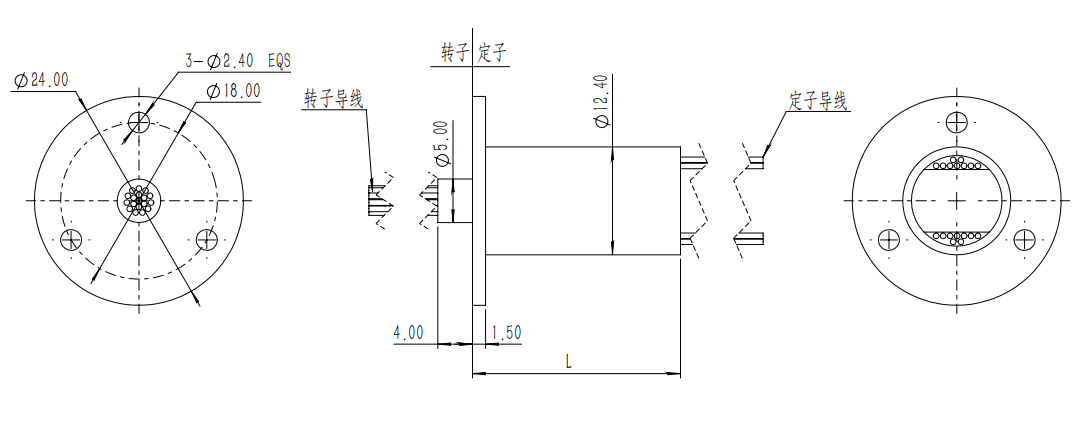

Model	Circuits	Voltage	Dielectric Strength	Insulation Resistance	Length	Main Body Outer Diameter
HXZ-12.4-4X	4	240V AC/DC	≥500VAC@50Hz	≥100MΩ@500VDC	11	12.4
HXZ-12.4-6X	6	240V AC/DC	≥500VAC@50Hz	≥100MΩ@500VDC	13.2	12.4
HXZ-12.4-8X	8	240V AC/DC	≥500VAC@50Hz	≥100MΩ@500VDC	15.4	12.4
HXZ-12.4-12X	12	240V AC/DC	≥500VAC@50Hz	≥100MΩ@500VDC	19.8	12.4
HXZ-12.4-18X	18	110V AC/DC	≥200VAC@50Hz	≥100MΩ@200VDC	23.9	12.4
Conductive Parameters
Contact Resistance Variation			≤35mΩ(at 50rpm)
Wire Specifications			Ø0.65-AWG28 silver-plated Teflon wires
Wire Length			Rotor:250±5mm Stator:250±5mm
Mechanical Parameters
Operating Temperature			-20℃～ +65℃
Operating Humidity			≤60%RH
Protection Level			IP40
Operating Speed			0 ～ 300rpm
Service Life			≥5 million revolutions
Conductive Contact Material			Precious metals
Housing Material			Engineering plastics
Other Requirements			Full inspection

Wire Specifications and Color Code Table
Model	Color Code
HXZ-12.4-4X	1.Black	2.Brown	3.Red	4.Orange
HXZ-12.4-6X	1.Black	2.Brown	3.Red	4.Orange	5.Yellow	6.Green
HXZ-12.4-8X	1.Black	2.Brown	3.Red	4.Orange	5.Yellow	6.Green
HXZ-12.4-8X	7.Blue	8.Purple
HXZ-12.4-12X	1.Black	2.Brown	3.Red	4.Orange	5.Yellow	6.Green
HXZ-12.4-12X	7.Blue	8.Purple	9.Gray	10.White	11.Light Red	12.Light Blue
HXZ-12.4-18X	1.Black	2.Brown	3.Red	4.Orange	5.Yellow	6.Green
	7.Blue	8.Purple	9.Gray	10.White	11.Light Red	12.Light Blue
	13.Black	14.Brown	15.Red	16.Orange	17.Yellow	18.Green
