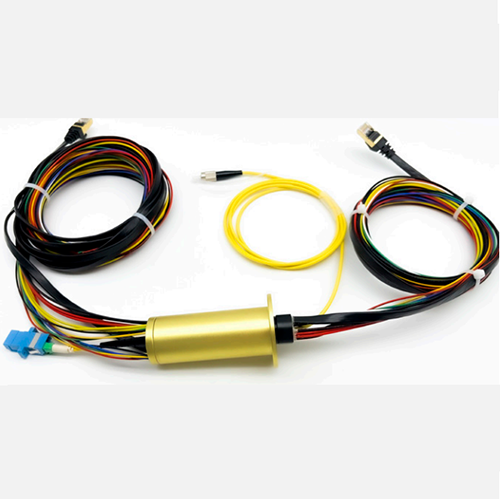

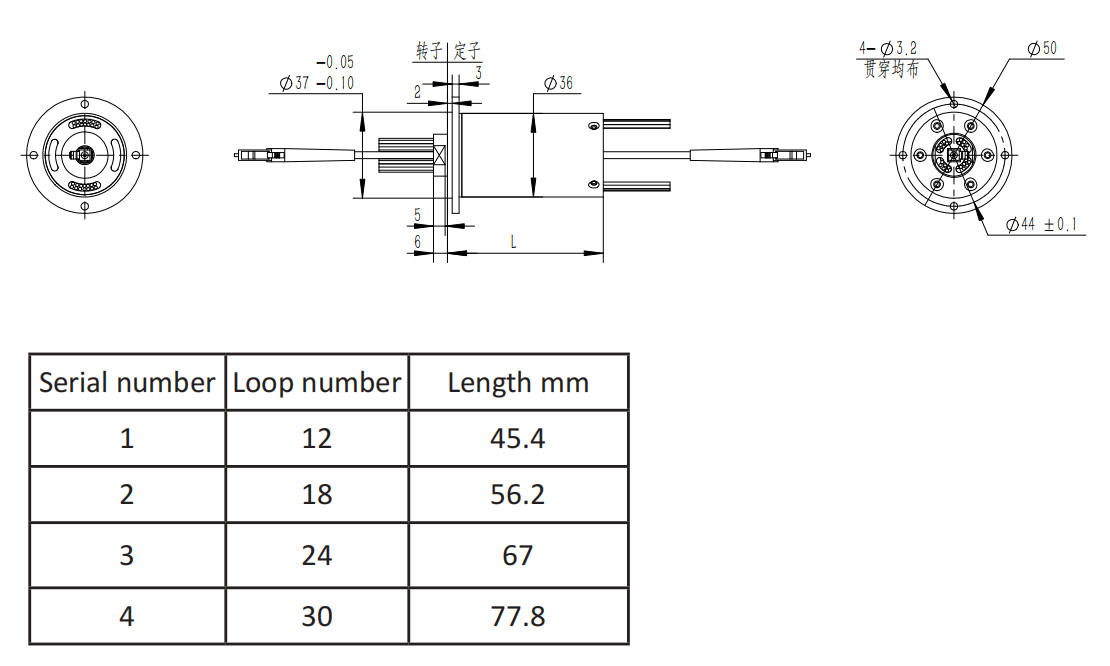

HXZ-36-mX1G Electro-Optical Slip Ring

Product Introduction

This slip ring module is modular in design, with 1-30 electrical circuits and 1 optical circuit. It has a compact design, with a main body diameter of only 36mm, making it easy to install. It can transmit both optical and electrical signals, making it suitable for harsh environments. It has a precious metal friction pair, ensuring a long service life.

Main Technical Performance

Electrical parameters
Loop number	1 ～ 30	Contact resistance fluctuation value	≤ 20mΩ
Operating current	5A or higher	Electrical contact material	Precious metals
Operating voltage	220VAC	Shell material.	Aluminum alloy
Insulation resistance	≥500MΩ@500VDC	Wire specifications.	AWG21 PTFE wire
Dielectric strength	500VAC@50Hz，60s	Length of the conductor	Rotor 500mm / Stator 500mm or as specified by the customer
Optical parameters
Number of paths.	1	Maximum optical power.	0.5W
Fiber optic type	Single mode or multimode	Fiber optic package	2.0 Armor
Work wavelength	1310nm/1550nm (single mode) 850nm (multimode)	Connector type.	FC/SC/LC/ST
Insertion loss	≤2.0dB	End face type.	PC/UPC/APC
Change in insertion loss	≤0.5dB	Fiber optic length.	Rotor 500mm / Stator 500mm or as specified by the customer
Return loss.	≥ 40dB (single mode) ≥ 20dB (multi mode)
Mechanical parameters
Operating temperature		-30℃ ～ 80℃ or as specified by the customer.
Storage temperature		-35℃ ～ 85℃ or as specified by the customer
Work humidity		≤ 80% RH
Protection level		IP54 or customer specified
Work speed		0 ～ 200rpm
Working life.		≤ 10 million rotations
