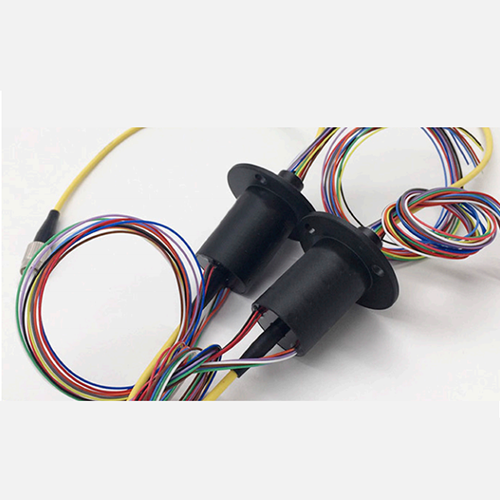

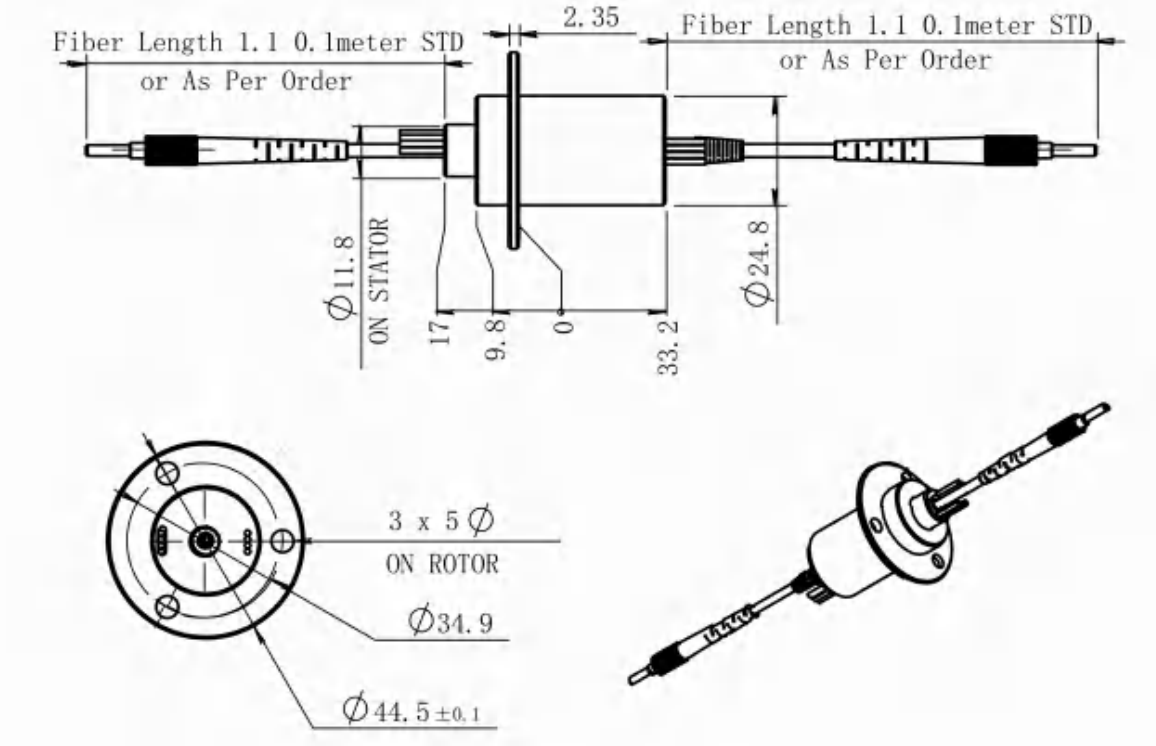

SRD1-25 Electro-Optical Slip Ring

Product Introduction

The SRD1-25 Electro-Optical Slip Ring includes 1 fiber and 1-24 electrical channels . The rated voltage is 240VAC/VDC, and each electrical channel of the standard product can transmit a current of 2A. Multiple electrical channels can be connected in parallel to transmit larger currents . For example, if 10A current is required, 5 channels can be used in parallel as one channel . Higher voltages can be achieved through customization.

Main Technical Performance

Indicator Name		Value
Fiber Optic Channel		single channel
Insertion Loss (Room Temperature)		≤ 1.5dB
Insertion Loss Fluctuation		≤ 0.7dB
Return Loss		≥ 40dB (SM)
Input Power		0.5W
Estimated Lifetime		> 200 million revolutions
Operating Temperature		-20 ～ 60℃ (-40 ～ 85℃ optional)
Storage Temperature		-45 ～ 80℃
Mec ha nica l Tec h nica l S pecificatio ns		Elect rica l Tec h nica l S pecificatio ns
Parameters	Value	Parameters	Value
Working life	20 million revolutions		Power	Signal
Rotation Speed	0 ～ 300RPM	Rated voltage	0 ～ 240VAC/VDC	0 ～ 240VAC/VDC
Operating temperature	-20℃～ 60℃	Insulation resistance	≥1000MΩ/500VDC	≥1000MΩ/500VDC
Operating humidity	0 ～ 60% RH	Wire specification	AWG28	AWG28
Contact material	Gold-Gold	Wire length	Standard length 250mm (adjustable as required)
Housing material	Engineering plastic or metal	Insulation strength	500VAC@50Hz，60s
Rotational torque	0.1N.m；+0.03N.m/6 paths	Dynamic resistance change value	<0.01Ω
Protection class	IP54
