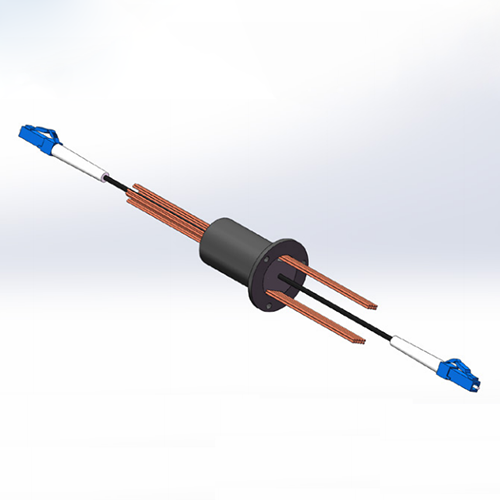

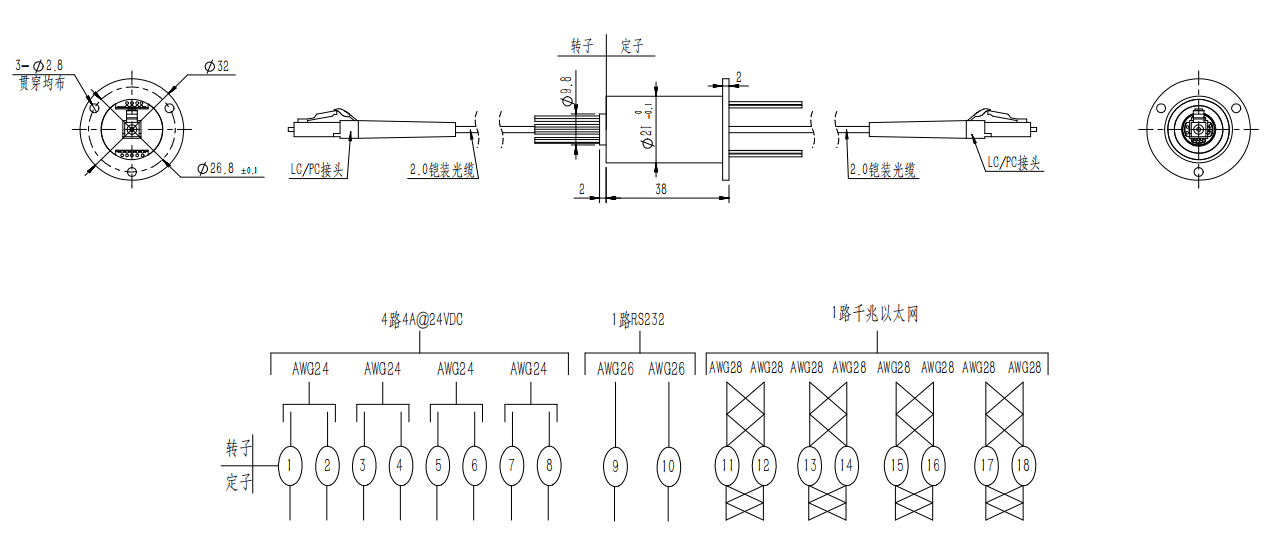

HXZ-21-mX1G Electro-Optical Slip Ring

Product Introduction

The HXZ-21-mX1G optoelectronic slip ring features one optical transmission channel along with multiple power and low-frequency signal channels. The optical transmission channel is characterized by high data transmission rates, stable and reliable performance, and long rotational lifespan. It is particularly suitable for applications requiring high reliability, such as video, network, and USB high- speed signal transmission, as well as industrial equipment control signals.

Main Technical Performance

Optical parameters
Channels	1
Wavelength	1310/1550nm
Fiber Type	SM
Insertion Loss (Room Temperature)	≥ 3.5dB
Connector Type	LC/PC
Package	2.0m armor
Tensile Strength	10N
Housing Material	Stainless steel
Fiber Length	Rotor：500mm/ Stator：500mm
Electrical parameters
Channels	18
Current Ratings	4 channels at 4A @ 24VDC, 1 channel RS232 (2 circuits), 1 channel Gigabit Ethernet (8 circuits)
Insulation Resistance	≥ 200MΩ @300VDC
Dielectric Strength	300VAC@50Hz,60s
Contact Resistance Variation	≤ 20mΩ
Electrical Contact Material	Precious Metal
Housing Material	Aluminum Alloy + Engineering Plastic
Wire Length	Rotor: 500mm, Stator: 500mm

Mechanical parameters
Operating Temperature	-40℃ to +80℃ or customer specified
Storage Temperature	-45℃ to +85℃ or customer specified
Operating Humidity	≤ 80%RH
Protection Level	IP51/IP54
Operating Speed	200rpm or higher
Service Life	≥ 10 million revolutions
