HXZ-56-mX1G Electro-Optical Slip Ring

Product Introduction

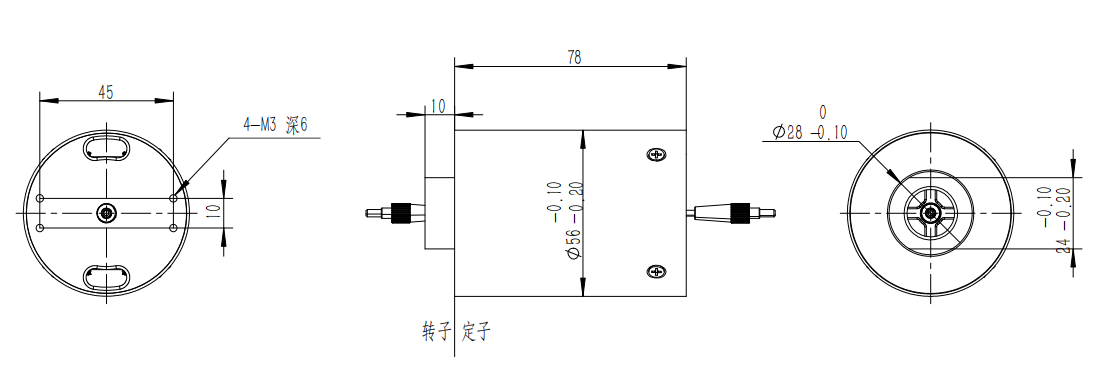

This slip ring features a modular design, with 1 to 20 electrical circuits and 1 optical channel. It has a compact design with a rotor outer diameter of 56mm, making it easy to install. The slip ring supports hybrid transmission of optical and electrical signals, operates in harsh environments, and incorporates precious metal contacts for extended service life.

Optical parameters
Channels	1
Fiber Type	SM/MM
Wavelength	1310/1550(SM) ；850(MM)
Insertion Loss (Room Temperature)	≤ 2dB
Insertion Loss Fluctuation	≤ 1dB
Return Loss	≥ 40dB(SM) ≥ 20dB( MM)
Power Handling	0.5W
Package	2.0 armor
Connector Type	FC/SC/LC/ST
End Face Type	PC/UPC/APC
Fiber Length	Rotor：500mm/ Stator：500mm or customer specified
Crosstalk	≥ 50dB
Electrical parameters
Operating Voltage	220V AC/DC
Operating Current	10A or higher
Contact Resistance Variation	≤ 20mΩ
Dielectric Strength	500VAC@50Hz，60s
Insulation Resistance	≥ 500 M Ω@500VDC
Wire Specification	AWG17 Teflon Wire
Wire Length	Rotor：500mm/ Stator：500mm or customer specified

Main Technical Performance

Mechanical parameters
Operating Temperature	-30℃ to +80℃ or customer specified
Storage Temperature	-35℃ to +85℃ or customer specified
Operating Humidity	≤ 80%RH
Protection Level	IP51/IP54
Operating Speed	200rpm or higher
Service Life	≥ 10 million revolutions
Electrical Contact Material	Precious Metal
Housing Material	Aluminum Alloy
Other Requirements	Full Inspection
