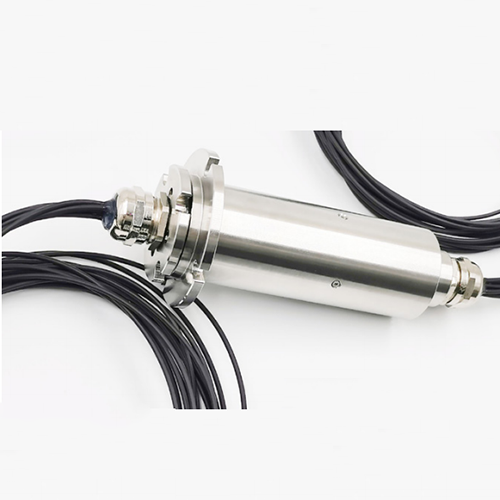

FRMMS Fiber Optic Rotary Joint

Product Introduction

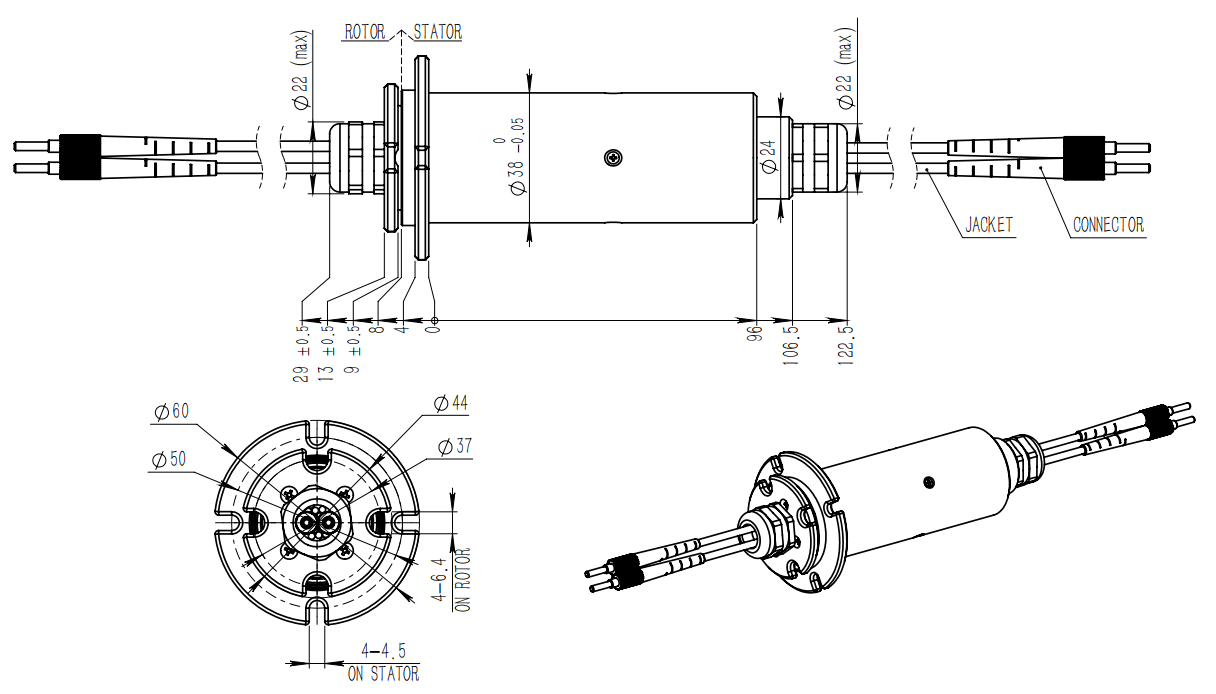

The FRMMS type super-integrated multi-channel fiber optic rotary joint can contain 2 to 31 fibers, with an installation diameter of only 38mm. It is one of the smaller diameter fiber optic slip rings with 8 or more channels and is suitable for scenarios with limited installation space. It can be selected as single-mode, multi-mode, or single-multi-mode hybrid and has excellent optical performance.

Elements Required for Ordering

FRMMS①-②-③-④-⑤-⑥/⑦

Example：FRMMS8-9/125-1310-1-Φ2.0K-FC/PC

①Channel

②Fiber Type

③Operating

Wavelength

Tail Fiber

2 ～ 31

9/125(single-mode) 50/125(multi-mode) 62.5/125(multi-mode)

850

1310

1550

④Tail Fiber: length 1.2m, S (customer specified)

⑤Package: Φ0.9mm, Φ2.0K, Φ3.0K, K= armor-clad

⑥Connector Type: FC, ST, SC, LC, N= no connector

⑦End Face Type: PC (flat), APC (angled)

Main Technical Performance

Indicator Name	Value
Bandwidth	±50nm
Wavelength	1310/1550(SM) ；850/1310(MM)
Insertion Loss (Room Temperature)	≤4.0dB
Insertion Loss Fluctuation	≤2.0dB
Return Loss	≥40dB(SM)
Power Handling	≤23dBm
Tensile Strength	≤12N
Rotation Speed	0 ～ 300 rpm (higher speeds can be customized)
Estimated Lifetime	> 100 million rotations
Operating Temperature	-20 ～ 60℃ (-40 ～ 85℃ optional)
Storage Temperature	-45 ～ 85℃
Weight (excluding tail cable and connector)	620g
Vibration and Impact Standard	GJB150 Land Mobile
Protection Class	IP54(IP65、IP67 optional)
