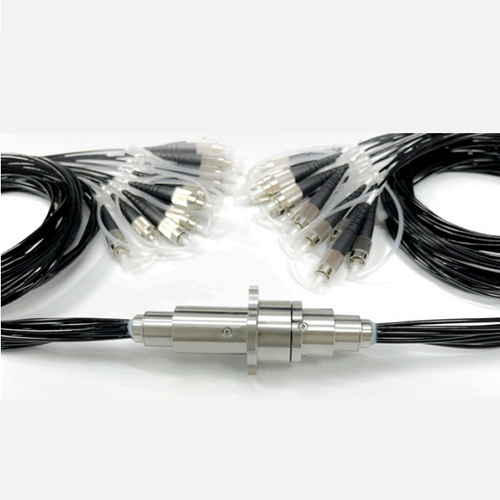

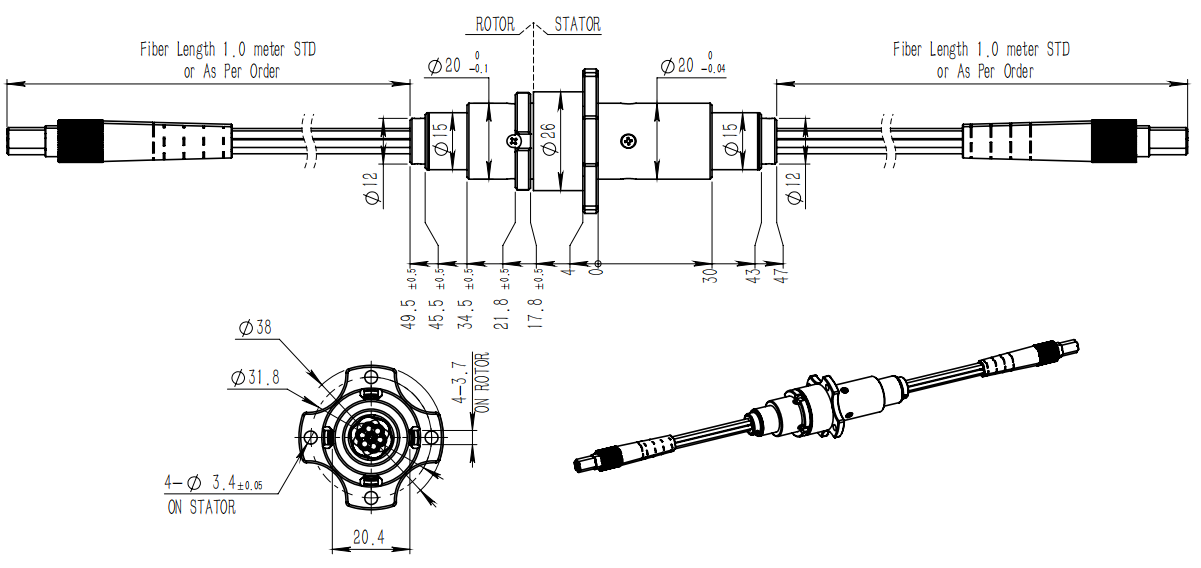

FRMM-K Fiber Optic Rotary Joint

Product Introduction

The FRMM-K fiber optic rotary joint is an axial compact multi- channel fiber optic slip ring, with a total length of only 96.5mm and up to 12 channels can be achieved. It can be selected as single- mode, multi-mode or single/multi-mode hybrid, and products with environmental resistance (shock, vibration, high and low temperature) levels are also available for selection.

Elements Required for Ordering

FRMM-K①-②-③-④-⑤-⑥/⑦

Example：FRMM-K4-9/125-1310-1-Φ2.0K-FC/PC

①Channel

②Fiber Type

③Operating

Wavelength

Tail Fiber

8 ～ 12

9/125(single-mode) 50/125(multi-mode) 62.5/125(multi-mode)

850

1310

1550

④Tail Fiber: length 1.2m, S (customer specified)

⑤Package: Φ0.9mm, Φ2.0K, Φ3.0K, K= armor-clad

⑥Connector Type: FC, ST, SC, LC, N= no connector

⑦End Face Type: PC (flat), APC (angled)

Main Technical Performance

Indicator Name	Value
Bandwidth	±50nm
Wavelength Range	1310/1550(SM) ；850/1310(MM)
Insertion Loss (room temperature)	≤4dB
Insertion Loss Fluctuation	≤2dB
Return Loss	≥40dB(SM)
Withstand Power	≤23dBm
Withstand Tensile Force	≤12N
Speed	300rpm(higher speed can be customized)
Estimated Life	>100 million revolutions
Operating Temperature	-20 ～ 60℃ (-40 ～ 85℃ optional)
Storage Temperature	-45 ～ 85℃
Weight (excluding tail cable and connector)	185g
Vibration and Impact Standard	GJB150 Land Mobile
Protection Class	IP54(IP65、IP67 optional)
