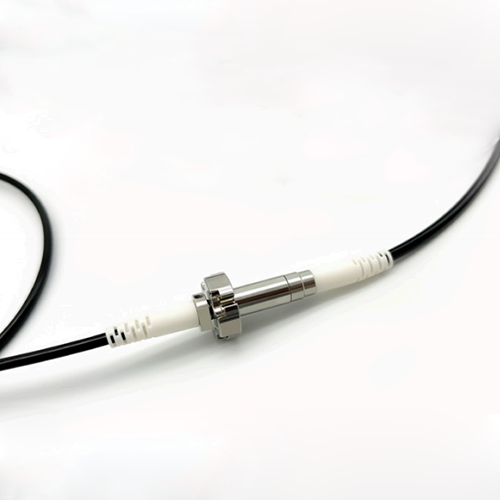

FRSHP High-Power Fiber Optic Rotary Joint

Product Introduction

FRSHP Special Fiber Type Fiber Optic Rotary Joint can use large core diameter fibers such as 25/400, 105/125, 200/220, 800/1000 or other customer-specified fibers. fiber optic rotary joints made with these types of fibers can be used in applications that require high power transmission.

Elements Required for Ordering

FRSHP①-②-③-④-⑤-⑥/⑦

Example：FRSHPA-105/125-1064-1.2m-Φ3.0-FC/PC

①Channel	②Fiber Type	③Operating Wavelength	Tail Fiber
	25/400(sparse model)	850	④Tail Fiber: length 1.2m, S (customer specified)
1	105/125(dense multi-modal model)	1310	⑤Package: Φ0.9mm, Φ2mm, Φ3mm, K= armor-clad
	200/220(dense multi-modal model) 800/1000(dense multi-modal model)	1550	⑥Connector Type: FC, ST, SC, LC, N= no connector ⑦End Face Type: PC (flat), APC (angled)

Main Technical Performance

Indicator Name	Value
Bandwidth	±50nm
Wavelength Range	650 ～ 1650nm
Insertion Loss (Room Temperature)	≤2.0dB
Insertion Loss Fluctuation	≤1.0dB
Return Loss	≥30dB
Tensile Strength	≤12N
Rotation Speed	0 ～ 1000rpm
Estimated Lifetime	200 million rpm
Operating Temperature	-20 ～ 60℃ (-40 ～ 85℃ optional)
Storage Temperature	-50 ～ 85℃
Weight (excluding tail cable and connector)	20g
Vibration and Impact Standard	GJB150 Land Mobile
Protection Class	IP54(IP65、IP67 optional)
