FR-J Reel-Specific Rotary Joint

Product Introduction

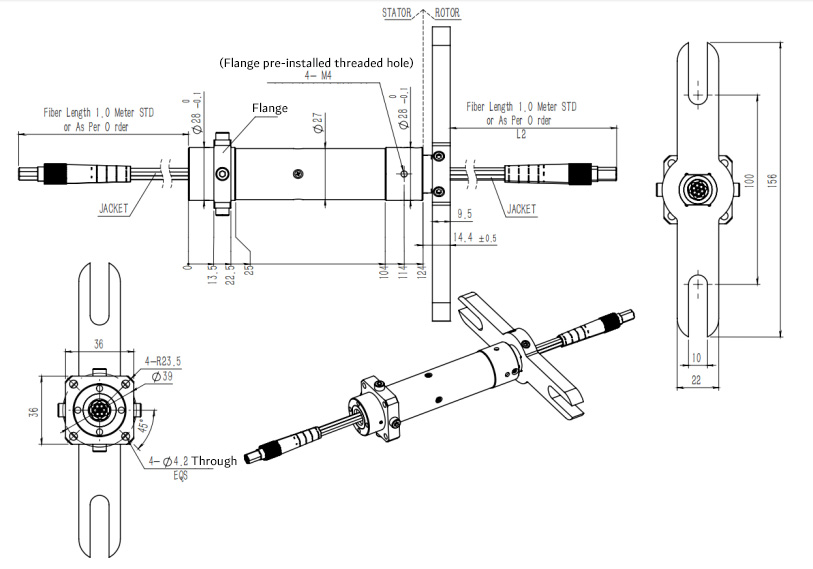

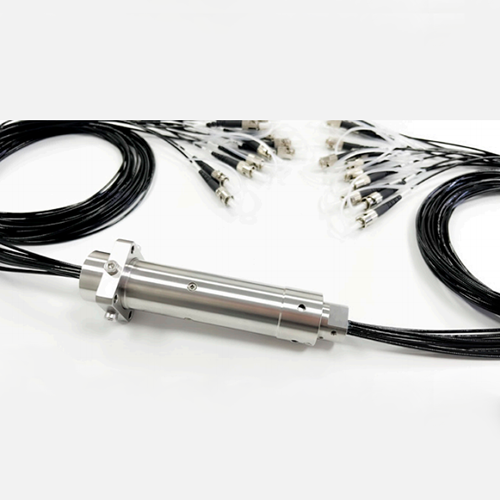

The FR-J model multi-channel fiber optic rotary joint is a product specially developed by our company for the cable reel industry. Compared to fiber optic couplers with limited number ofturns,this product has the advantages of no limit on the number of turns used, allowing high rotation speed, and long service life.In addition, compared to conventional fiber optic rotary joint, this product has a very high cost performance, making it the optimal solution for solving the problem of optical cable rotation connection in the optical cable reel industry.

Elements Required for Ordering

FR-J①-②-③-④-⑤-⑥/⑦

①Channel

②Fiber Type

③Operating

Wavelength

Tail Fiber

2 ～ 12

9/125(single-mode) 50/125(multi-mode) 62.5/125(multi-mode)

850

1310

1550

④Tail Fiber: length 1.2m, S (customer specified)

⑤Package: Φ0.9mm, Φ2.0K, Φ3.0K, K= armor-clad

⑥Connector Type: FC, ST, SC, LC, N= no connector

⑦End Face Type: PC (flat), APC (angled)

Example：FR-J4-9/125-1310-1-Φ2.0K-FC/PC

Main Technical Performance

Indicator Name	Value
Bandwidth	±50nm
Wavelength Range	1310/1550(SM) ；850/1310(MM)
Insertion Loss (room temperature)	≤5dB
Insertion Loss Fluctuation	≤3dB
Return Loss	≥40dB(SM)
Withstand Power	≤23dBm
Withstand Tensile Force	≤12N
Speed	300rpm(higher speed can be customized)
Estimated Life	>10 million revolutions
Protection Class	IP54(IP65、IP67 optional)
