FRSD Miniature Single-Channel Fiber Optic Rotary Joint
Product Introduction

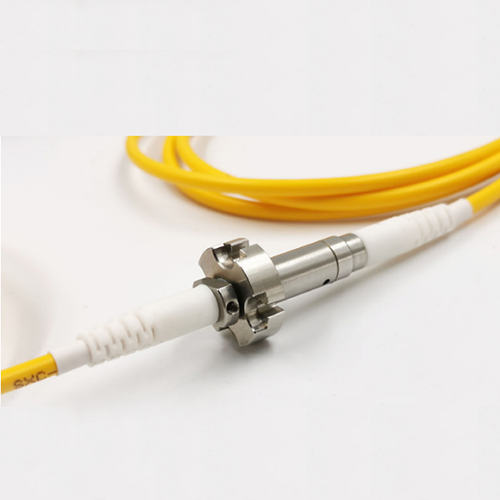

The FRSD is a miniature single-channel Fiber Optic Rotary Joint, with an installation diameter of only 6.8mm, making it a relatively compact product. It is especially suitable for scenarios with limited installation space.
The FRSD can be configured with single-mode or multimode fiber, offering excellent optical performance, and is also waterproof and dust-proof.
Elements Required for Ordering
FRSD①-②-③-④-⑤-⑥/⑦
①Channel | ②Fiber Type | ③Operating Wavelength | Tail Fiber |
1 | 9/125(single-mode) 50/125(multi-mode) 62.5/125(multi-mode) | 850 1310 1550 | ④Tail Fiber: length 1.2m, S (customer specified) ⑤Package: Φ0.6mm, Φ2mm, Φ3mm, K= armor-clad ⑥Connector Type: FC, ST, SC, LC, N= no connector ⑦End Face Type: PC (flat), APC (angled) |
Example：FRSD-9/125-1310-1m-Φ3.0-FC/PC
Main Technical Performance
Indicator Name | Value |
Operating Wavelength | 1310/1550(SM)；850/1310(MM) |
Insertion Loss (Room Temperature) | ≤1.5dB |
Insertion Loss Fluctuation | ≤0.7dB |
Return Loss | ≥40dB(SM) |
Power Handling | ≤23dBm |
Tensile Strength | ≤12N |
Rotational Speed | 0 ～ 2000rpm |
Service life | > 200 million rotations |
Operating Temperature | -20 ～ 60℃ (-40 ～ 85℃ optional) |
Storage Temperature | -50 ～ 85℃ |
Weight (excluding tail cable and connector) | 15g |
Vibration and Impact Standard | GJB150 Land Mobile |
Protection Class | IP54(IP65、IP67 optional) |

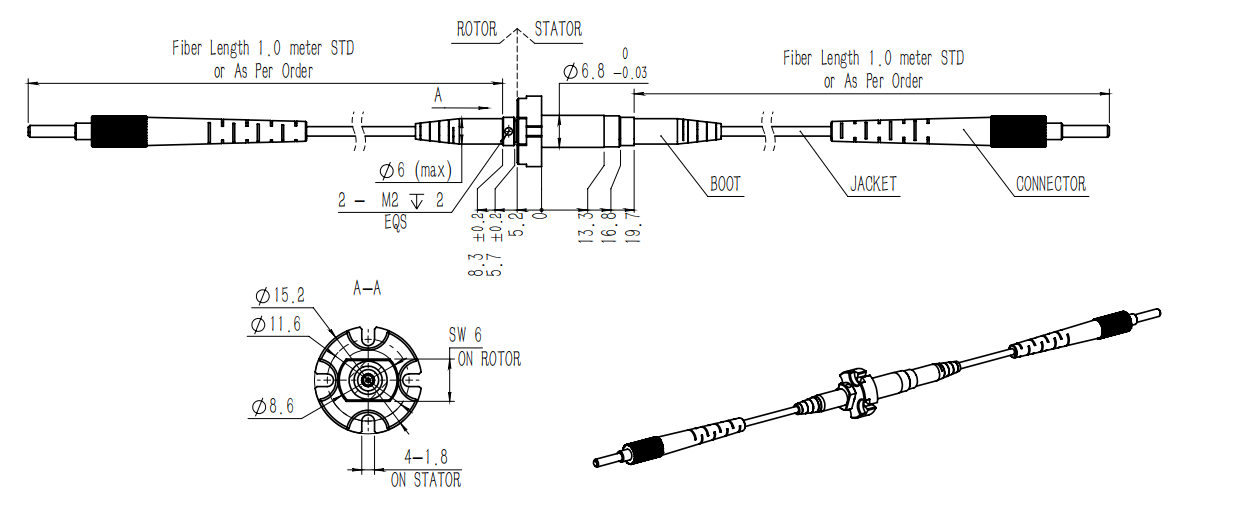

FRSD Dimensions
