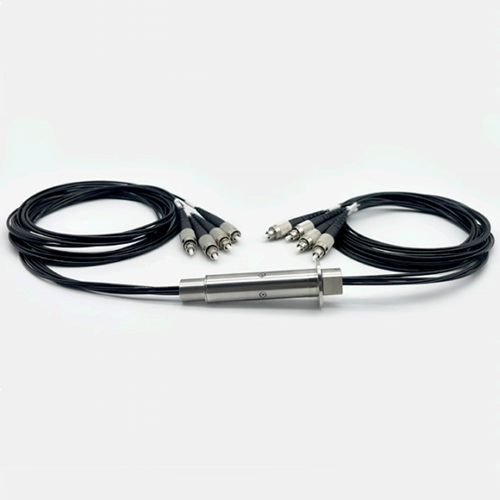

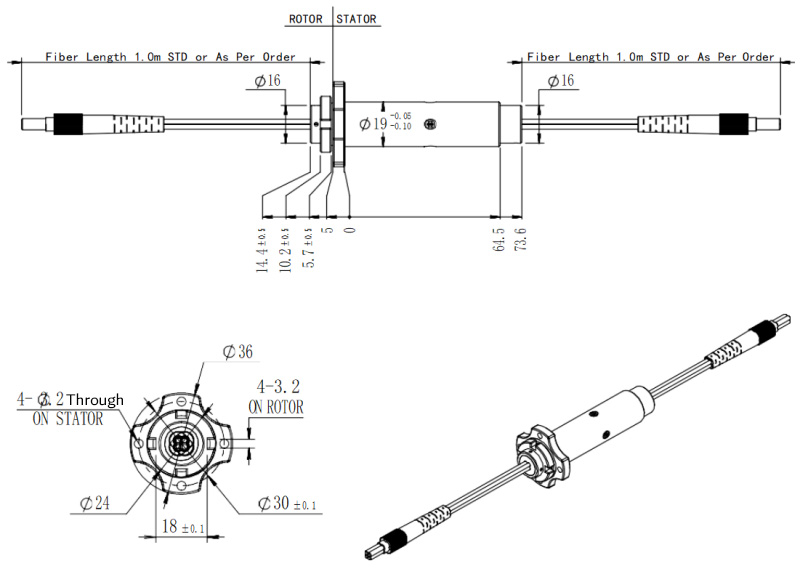

FR19 Fiber Optic Rotary Joint

Product Introduction

The FR19 fiber optic rotary joint is currently one of the smallest multi-channel fiber optic rotary joints, with a main body diameter of only 19mm, capable of accommodating up to 7 channels. It offers the option of single-mode, multi-mode, or a combination of both, and products with environmental resistance (shock, vibration, high and low temperatures) are also available.

Elements Required for Ordering
FR19①-②-③-④-⑤-⑥/⑦

①Channel

②Fiber Type

③Operating

Wavelength

Tail Fiber

2 ～ 7

9/125(single-mode) 50/125(multi-mode) 62.5/125(multi-mode)

850

1310

1550

④Tail Fiber: length 1.2m, S (customer specified)

⑤Package: Φ0.9mm, Φ2.0K, Φ3.0K, K= armor-clad

⑥Connector Type: FC, ST, SC, LC, N= no connector

⑦End Face Type: PC (flat), APC (angled)

Example：FR19-4-9/125-1310-1- Φ2.0K-FC/PC

Main Technical Performance

Indicator Name	Value
Bandwidth	±50nm
Wavelength	1310nm/1550nm(SM)；850nm /1310nm(MM)
Insertion Loss (Room Temperature)	≤4.0dB
Insertion Loss Fluctuation	≤2.0dB
Return Loss	≥40dB(SM)
Power Handling	≤23dBm
Tensile Strength	≤12N
Rotation Speed	0 ～ 300 rpm (higher speeds can be customized)
Estimated Lifetime	> 100 million rotations
Operating Temperature	-20℃～ 60℃ (-45℃～ 85℃ optional)
Storage Temperature	-45℃～ 85℃
Weight (excluding tail cable and connector)	120g
Vibration and Impact Standard	GJB150 Land Mobile
Protection Class	IP54(IP65、IP67 optional)
