Shipborne Slip Rings

Product Introduction

Slip rings used in shipborne environments are mainly used in shipborne radar antennas, artillery systems, photoelectric masts, photoelectric theodolites, submarine inertial navigation, deep-sea submersibles and hydrophones for cable winding and unwinding, underwater robots, deck lifting, shore power supply systems, etc. These slip rings need special protective design for marine applications. For example, to resist salt spray erosion, 316 stainless steel is used for the shell, and sufficient dynamic sealing is designed to prevent water vapor from entering the product. The slip rings used in submarine inertial navigation have high requirements for ring spacing and service life, while deep-sea submersibles and hydrophones need to be equipped with fiber optic rotary joints with more than 22 channels.

Typical Applications

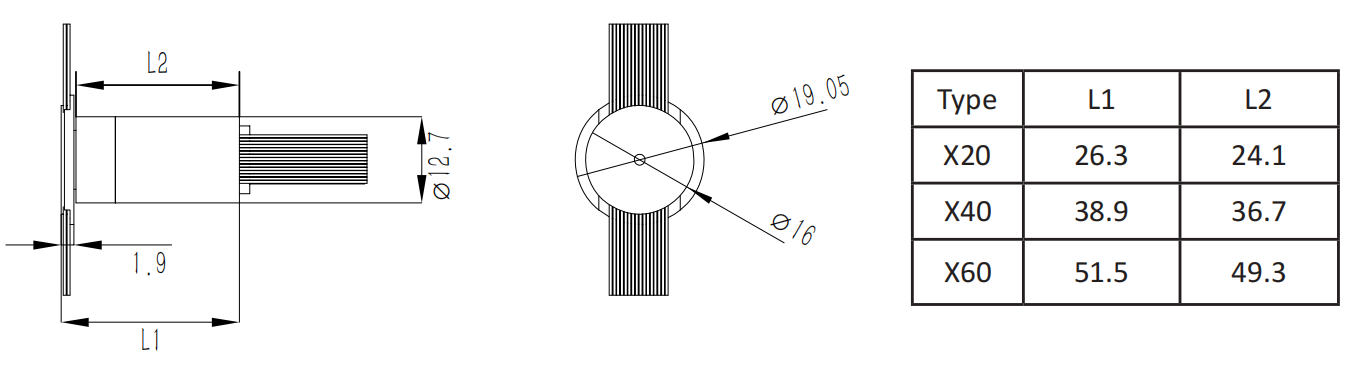

A certain model of submarine inertial navigation slip ring produced by our company, X20 model contains 21 ring channels, with a ring spacing of 0.3mm, a product diameter of 12.7mm, and a total length of 26.3mm. X40 model contains 42 ring channels, with a ring spacing of 0.3mm, a product diameter of 12.7mm, and a total length of 38.9mm. X60 model contains 63 ring channels, with a ring spacing of 0.3mm, a product diameter of 12.7mm, and a total length of 51.5mm.

Main Technical Performance

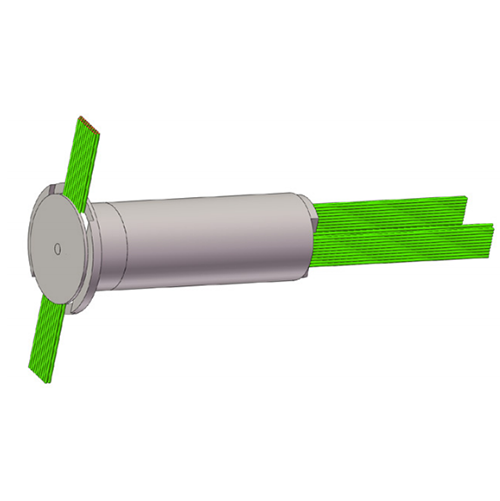

SRM13-X20/X40/X60 Miniature Slip Ring
Main Body Diameter	Φ12.7mm	Rotational Torque	≤0.75N.cm(X20) ≤1.1N.cm(X40) ≤1.5N.cm(X60)
Number of Rings	20/40/60	Electrical Contact Material	Gold Alloy
Wire Specification	Polyimide Enamel Wire 0.06mm2	Housing Material	Stainless Steel
Current / Voltage	1A/250VDC	Operating temperature	-40℃～ 80℃
Dynamic contact resistance change value	≤20mΩ	Storage temperature	-45℃～ 85℃
Insulation resistance	≥250MΩ@250VDC	Work humidity	≤80%RH
Dielectric strength	250VAC@50Hz，60s	Protection level	IP53
Maximum speed	200rpm	Vibration impact	Conform to the national military standard mechanical environment adaptability test.
Life	≥ 200 million views	Default lead length	Rotor 300mm/ Stator 300mm
