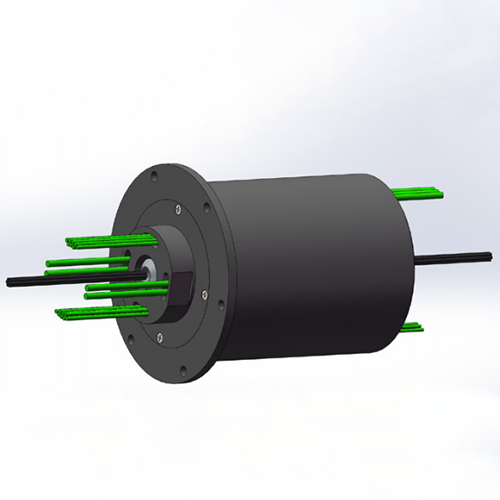

Photoelectric rotary tower slip ring
Typical Applications
Our company produces a certain model of photoelectric rotary tower slip ring, which is used in conjunction with conductive slip rings, fiber optic rotary joints, rotary transformers, and liquid slip rings, including 20 channels of 70A electrical power, 8 channels of 15A electrical power, 8 channels of low-frequency signals, 3 channels of Gigabit Ethernet signals, 2 channels of optical signals, and 2 channels of cooling liquid.
Main Technical Performance
Ring number | Cable number | Signal indication | Cable specifications | Note. |
1 | 1 | 35KW@380VAC L1 | 4*AF-250-2.5mm² |
XX power 1 |
2 | 2 | 35KW@380VAC L2 | 4*AF-250-2.5mm² | |
3 | 3 | 35KW@380VAC L3 | 4*AF-250-2.5mm² | |
4 | 4 | 35KW@380VAC N | 4*AF-250-2.5mm² | |
5 | 5 | 35KW@380VAC GND | 4*AF-250-2.5mm² | |
6 | 6 | 35KW@380VAC L1 | 4*AF-250-2.5mm² |
XX Power 2 |
7 | 7 | 35KW@380VAC L2 | 4*AF-250-2.5mm² | |
8 | 8 | 35KW@380VAC L3 | 4*AF-250-2.5mm² | |
9 | 9 | 35KW@380VAC N | 4*AF-250-2.5mm² | |
10 | 10 | 35KW@380VAC GND | 4*AF-250-2.5mm² |
11 | 11 | 35KW@380VAC L1 | 4*AF-250-2.5mm² |
XX Power 3 |
12 | 12 | 35KW@380VAC L2 | 4*AF-250-2.5mm² | |
13 | 13 | 35KW@380VAC L3 | 4*AF-250-2.5mm² | |
14 | 14 | 35KW@380VAC N | 4*AF-250-2.5mm² | |
15 | 15 | 35KW@380VAC GND | 4*AF-250-2.5mm² | |
16 | 16 | 35KW@380VAC L1 | 4*AF-250-2.5mm² |
XX Power 4 |
17 | 17 | 35KW@380VAC L2 | 4*AF-250-2.5mm² | |
18 | 18 | 35KW@380VAC L3 | 4*AF-250-2.5mm² | |
19 | 19 | 35KW@380VAC N | 4*AF-250-2.5mm² | |
20 | 20 | 35KW@380VAC GND | 4*AF-250-2.5mm² |
21 | 21 | 7KW@380VAC L1 | AF-250-2.0mm² |
Servo Power |
21 | 22 | 7KW@380VAC L2 | AF-250-2.0mm² | |
23 | 23 | 7KW@380VAC L3 | AF-250-2.0mm² | |
24 | 24 | 7KW@380VAC N | AF-250-2.0mm² | |
25 | 25 | 7KW@380VAC GND | AF-250-2.0mm² | |
26 | 26 | 2A@24VDC 1mm² | AF-250-1.0mm² |
Servo Emergency |
27 | 27 | 2A@24VDC 1mm² | AF-250-1.0mm² | |
28 | 28 | 3KW@220VAC L | AF-250-2.0mm² |
Signal Source / Monitoring |
29 | 29 | 3KW@220VAC N | AF-250-2.0mm² | |
30 | 30 | 3KW@220VAC GND | AF-250-2.0mm² |
31 |
31 |
2*0.2mm2 Twisted Shielded Cable |
2*0.2mm2 Twisted Shielded Cable |
Servo Manual Control |
33 | ||||
34 |
32 | 2*0.2mm2 Twisted Shielded Cable | 2*0.2mm2 Twisted Shielded Cable | |
35 | ||||
36 |
33 | 2*0.2mm2 Twisted Shielded Cable | 2*0.2mm2 Twisted Shielded Cable | |
37 | ||||
38 |
34 | 2*0.2mm2 Twisted Shielded Cable | 2*0.2mm2 Twisted Shielded Cable | |
39 | ||||
40 |
35 |
