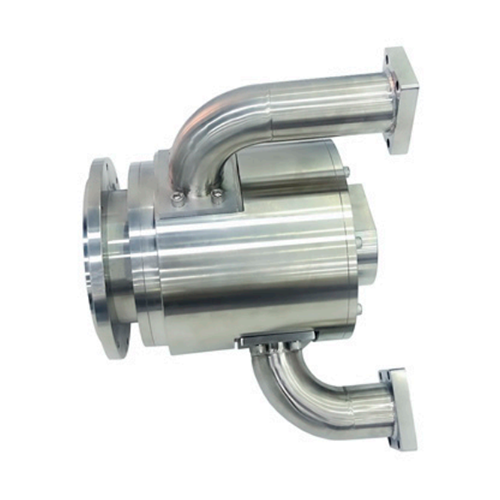

SRL295-02L-SWG Liquid Slip Ring

Product Introduction

This product is primarily used in radar turntables to facilitate the supply and recovery of coolant between the radar ground equipment and radar antenna array equipment, ensuring the circulation of coolant.

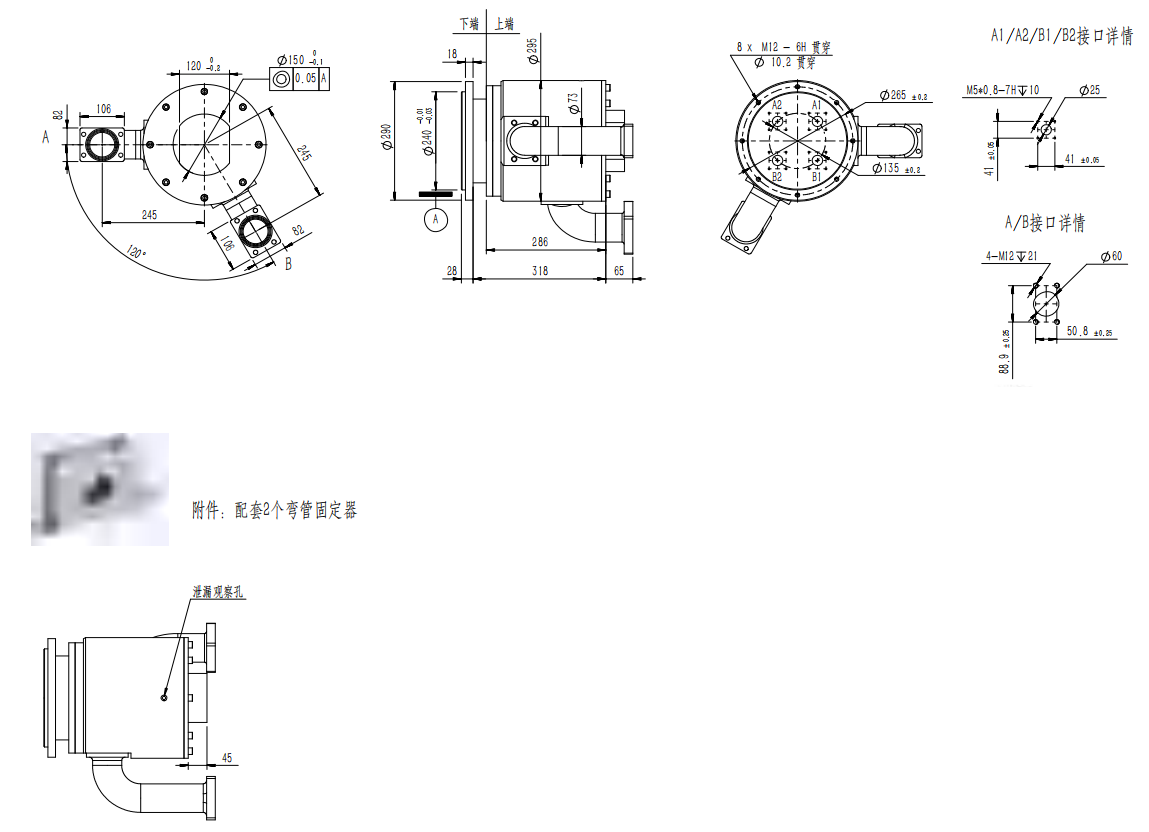

The upper end has two φ60 diameter interfaces, A/B, and the lower end has four φ25 diameter interfaces, A1/A2/B1/B2. The

upper end's A interface is connected to the lower end's A1/A2 interfaces, and the upper end's B interface is connected to the lower end's B1/B2 interfaces.

Indicator Name	Values
Flow Resistance	≤ 0.1MPa (Bidirectional)
Operating Temperature	-40℃～ +65℃
Storage Temperature	-45℃～ +70℃
Weight	≤150Kg
Rotation Speed	0 ～ 100rpm
Rotation Life	≥ 5 million revolutions
Torque	≤120Nm
Exterior Appearance	Exposed sharp corners with rounded edges
Accessories	Includes 2 Matching Fixed Devices
