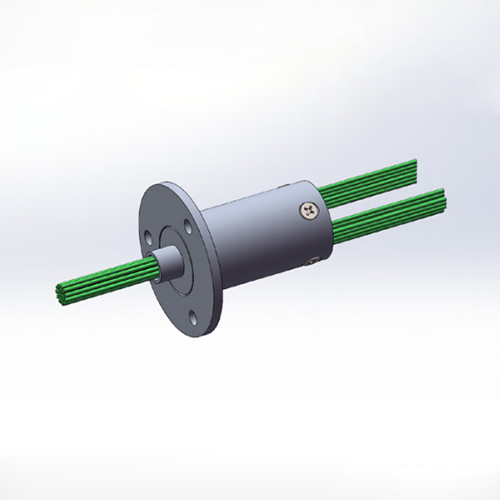

HXZ-22 Conductive Slip Ring

Model

Circuits

Length

Main Body Outer Diameter

HXZ-22-6X

6

17

22

HXZ-22-12X

12

24.5

22

HXZ-22-18X

18

31.9

22

HXZ-22-24X

24

39.6

22

HXZ-22-30X

30

47

22

HXZ-22-36X

36

54.5

22

Conductive Parameters

Operating Voltage

0 ～ 240V AC/DC

Contact Resistance Variation

≤35mΩ(at 50rpm)

Dielectric Strength

≥500VAC@50Hz

Insulation Resistance

≥1000MΩ@500VDC

Wire Length

Rotor:250±5mm

Stator:250±5mm

Mechanical Parameters

Operating Temperature

-20℃～ +80℃

Operating Humidity

≤60%RH

Protection Level

IP40

Operating Speed

0 ～ 300rpm

Service Life

≥ 5 million revolutions

Conductive Contact Material

Precious metals

Housing Material

Engineering plastics

Other Requirements

Full inspection

Model

Wire Specifications

Color Code

HXZ-22-6X

Ø0.8-AWG26

silver-plated Teflon

wires

1. Black

2. Brown

3. Red

4. Orange

5. Yellow

6. Green

HXZ-22-12X

Ø0.8-AWG26

silver-plated Teflon

wires

1. Black

2. Brown

3. Red

4. Orange

5. Yellow

6. Green

7. Blue

8. Purple

9. Gray

10. White

11. Light Red

12. Light Blue

HXZ-22-18X

Ø0.8-AWG27

silver-plated Teflon wires

1. Black

2. Brown

3. Red

4. Orange

5. Yellow

6. Green

7. Blue

8. Purple

9. Gray

10. White

11. Light Red

12. Light Blue

13.Black

14. Brown

15. Red

16. Orange

17. Yellow

18. Green

HXZ-22-24X

Ø0.8-AWG27

silver-plated Teflon wires

1. Black

2. Brown

3. Red

4. Orange

5. Yellow

6. Green

7. Blue

8. Purple

9. Gray

10. White

11. Light Red

12. Light Blue

13.Black

14. Brown

15. Red

16. Orange

17. Yellow

18. Green

19. Blue

20. Purple

21. Gray

22. White

23. Light Red

24. Light Blue

HXZ-22-30X

Ø0.8-AWG27

silver-plated Teflon wires

1. Black

2. Brown

3. Red

4. Orange

5. Yellow

6. Green

7. Blue

8. Purple

9. Gray

10. White

11. Light Red

12. Light Blue

13.Black

14. Brown

15. Red

16. Orange

17. Yellow

18. Green

19. Blue

20. Purple
