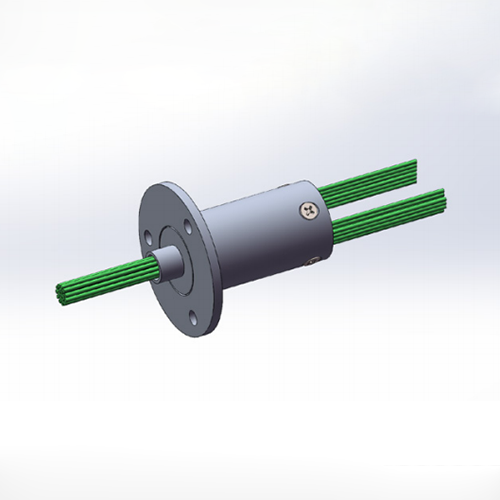

HXZ-15.5 Conductive Slip Ring

Product Introduction

This slip ring features a modular design with 24/30 circuits. It has a compact structure with a main body diameter of only 15.5 mm, making it easy to install and suitable for harsh environments. The use of precious metal friction pairs ensures a long service life.

Main Technical Performance

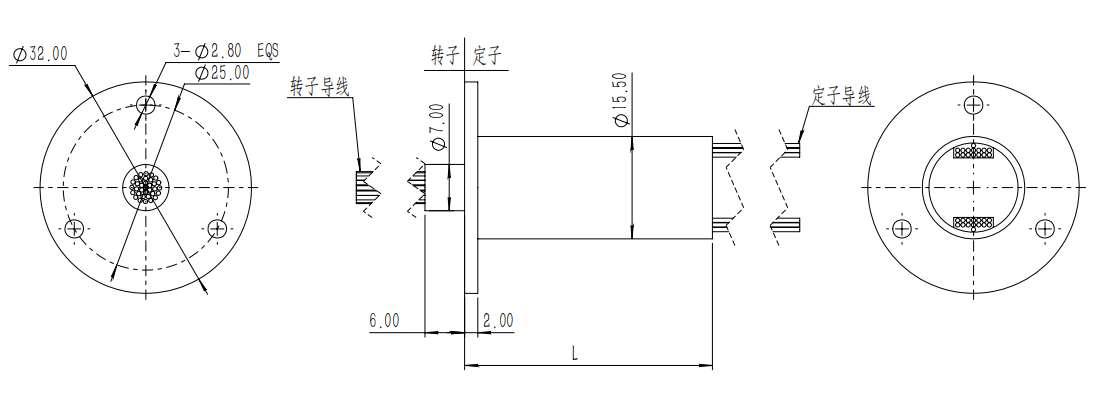

Specifications Sheet
Model	Circuits	Length	Main Body Outer Diameter
HXZ-15.5-24X	24	31.5	15.5
HXZ-15.5-30X	30	37.5	15.5
Conductive Parameters
Operating Voltage		110V AC/DC
Contact Resistance Variation		≤35mΩ(at 50rpm)
Dielectric Strength		≥200VAC@50Hz
Insulation Resistance		≥100MΩ@200VDC
Wire Specifications		Ø0.65-AWG28 silver-plated Teflon wires
Wire Length		Rotor:250±5mm Stator:250±5mm
Mechanical Parameters
Operating Temperature		-20℃～ +65℃
Operating Humidity		≤60%RH
Protection Level		IP40
Operating Speed		0 ～ 300rpm
Service Life		≥ 5 million revolutions
Conductive Contact Material		Precious metals
Housing Material		Engineering plastics
Other Requirements		Full inspection

Wire Specifications and Color Code Table
Model	Color Code
HXZ-15.5-24X	1. Black	2. Brown	3. Red	4. Orange	5. Yellow	6. Green
	7. Blue	8. Purple	9. Gray	10. White	11. Light Red	12. Light Blue
	13.Black	14. Brown	15. Red	16. Orange	17. Yellow	18. Green
	19. Blue	20. Purple	21. Gray	22. White	23. Light Red	24. Light Blue
HXZ-15.5-30X	1. Black	2. Brown	3. Red	4. Orange	5. Yellow	6. Green
	7. Blue	8. Purple	9. Gray	10. White	11. Light Red	12. Light Blue
	13.Black	14. Brown	15. Red	16. Orange	17. Yellow	18. Green
	19. Blue	20. Purple	21. Gray	22. White	23. Light Red	24. Light Blue
	25. Black	26. Brown	27. Red	28.Orange	29. Yellow	30. Green
