Solution B
Processing Size: 200*300mm
Professional PCB making machine
This solution B include all the machine to produce the PCB bards. This solution is mainly for produce the 200*300mm Double sided PCB board, This solution is very suitable for the school teaching and the small PCB production co,pany.We also provide the completely liquids,materials and allthe other consumables.You can start to do the PCB boards once you get our machine and all consumables.
Features:
Maximum PCB size:200*300mm
Single side PCB capacity: 12 square meter/day
Double side PCB capacity: 2 square meter/day
Line width:8Mil
Line space:8Mil
Mini aperture:0.4mm
Training:
Our engineer can do the training in your cuntry.
You can also come to our factory to fo the training.

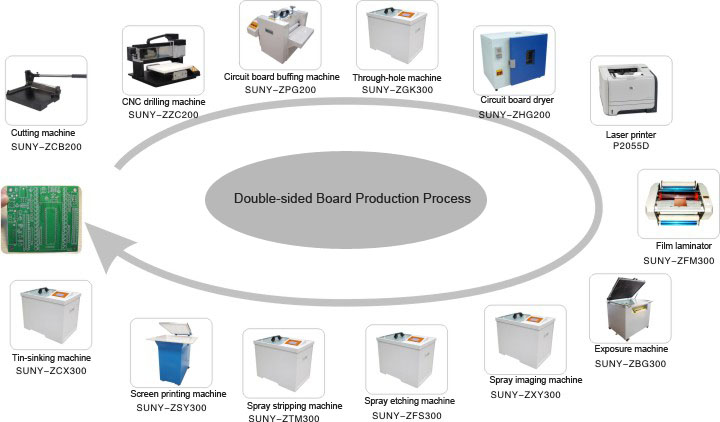

The production line equipment configuration
No. | Equipment name | Model | Unit | No. |
1 | Cutting machine | SUNY-ZCB200 | pcs | 1 |
2 | CNC drilling machine | SUNY-ZZC200 | pcs | 1 |
3 | Buffing machine | SUNY-ZPG100 | pcs | 1 |
4 | Through-hole machine | SUNY-ZGK300 | pcs | 1 |
5 | Screen printing machine | SUNY-ZSY200 | pcs | 1 |
6 | Circuit board dryer | SUNY-ZHG200 | pcs | 1 |
7 | Laser printer | P2055D | pcs | 1 |
8 | Exposure machine | SUNY-ZBG320 | pcs | 1 |
9 | Film laminator | SUNY-ZFM300 | pcs | 1 |
10 | Imaging machine | SUNY-ZXY200 | pcs | 1 |
11 | Etching machine | SUNY-ZFS200 | pcs | 1 |
12 | Stripping machine | SUNY-ZTM200 | pcs | 1 |
13 | Film contrapuntal box | SUNY-ZDW200 | pcs | 1 |
14 | PVC tank | SUNY-ZSC200 | pcs | 1 |
15 | Heat-transfer machine | SUNY-ZRZ200 | pcs | 1 |
16 | Teaching process wall chart | page | 15 |
