Solution S
Processing Size: 400*500mm
Professional PCB making machine
Description:
This solution include all the machine to produce the PCB bards. This solution is mainly for produce the 400*500mm PCB, This solution is suitable for the mass production.It is very good for the small factory.We also provide the completely liquids,materials and allthe other consumables.You can start to do the PCB boards once you get our machine and all consumables.
Features:
Maximum PCB size:400*500mm
Single side PCB capacity: 80 square meter/day
Double side PCB capacity: 12 square meter/day
Line width:6Mil
Line space:6Mil
Mini aperture:0.3mm
Training:
Our engineer can do the training in your cuntry.
You can also come to our factory to fo the training.
This production line include the following equipment:
No. | Equipment name | Model | Unit | Qty. |
1 | Cutting machine | SUNY-ZCB400 | pcs | 1 |
2 | CNC drilling machine | SUNY-ZZC400 | pcs | 2 |

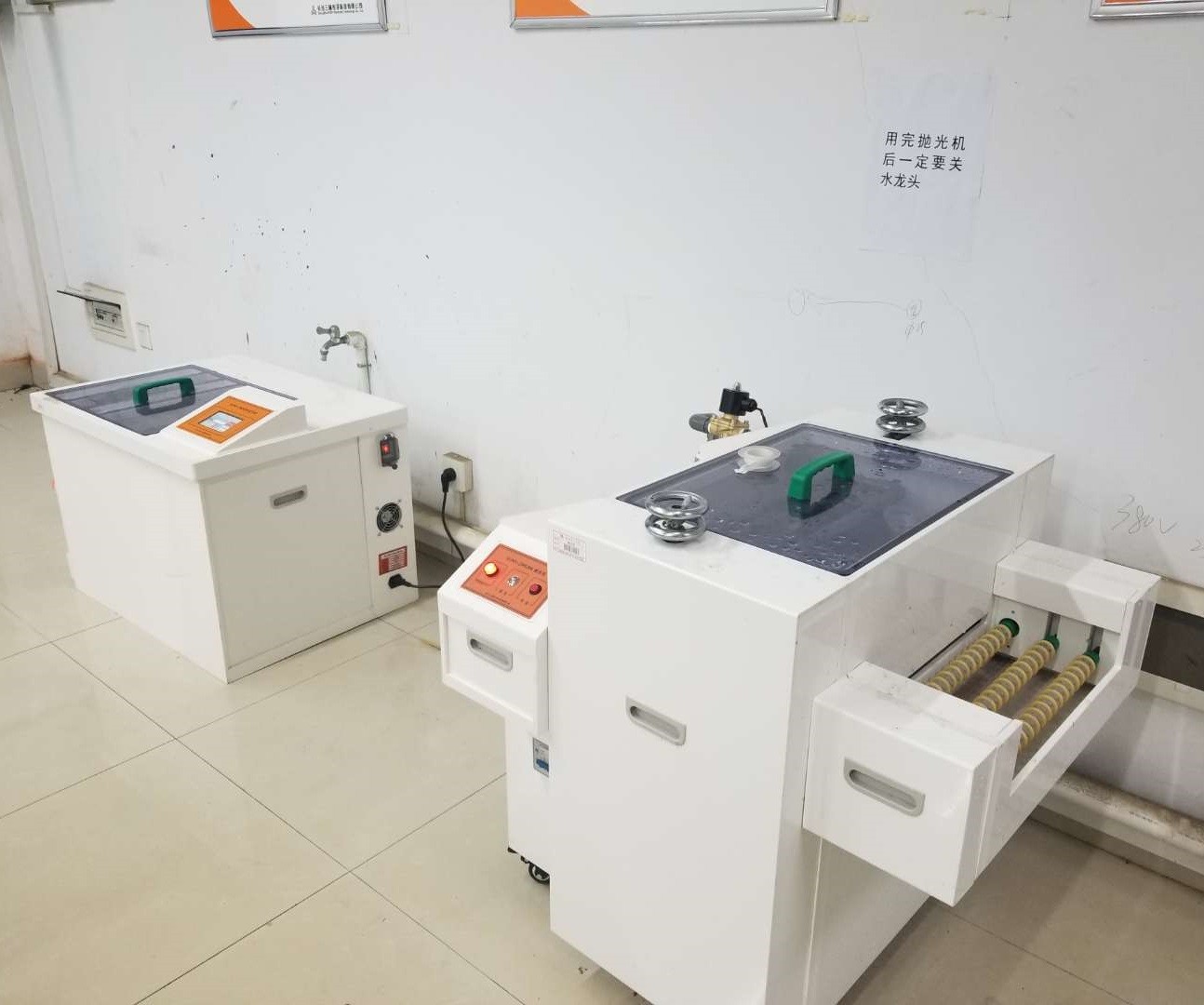

3 | Circuit board buffing machine | SUNY-ZPG400 | pcs | 1 |
4 | Full automatic copper-sinking machine | SUNY-ZCT500 | pcs | 1 |
5 | Copper-plating machine | SUNY-ZDT500 | pcs | 1 |
6 | Screen printing machine | SUNY-ZSY300 | pcs | 2 |
7 | Circuit board dryer | SUNY-ZHG300 | pcs | 2 |
8 | Laser plotter | SUNY-ZGH400 | pcs | 1 |
9 | Automatic film-developing machine | SUNY-ZCP400 | pcs | 1 |
10 | Exposure machine | SUNY-ZBG320 | pcs | 1 |
11 | Film laminator | SUNY-ZFM300 | pcs | 1 |
12 | Full automatic spray imaging machine | SUNY-ZXY500 | pcs | 1 |
13 | Full automatic spray etching machine | SUNY-ZFS500 | pcs | 1 |
14 | Full automatic spray stripping machine | SUNY-ZTM500 | pcs | 1 |
15 | Tin-sinking machine | SUNY-ZCX400 | pcs | 1 |
16 | Spray screen cleaner | SUNY-ZXW400 | pcs | 1 |
17 | Film contrapuntal desk | SUNY-ZDW300 | pcs | 1 |
18 | PVC tank | SUNY-ZSC300 | pcs | 1 |
19 | Laser printer | HP5200 | pcs | 1 |
20 | Heat-transfer machine | SUNY-ZRZ200 | pcs | 1 |
21 | Teaching process wall chart | page | 5 | |
22 | Plate making material | batch | 1 | |
23 | Engineering cost | time | 1 |
Optional resources
Optional software data | ||
No. | Electronic circuit design optional software data (assisting platform operation) | Introductions |
01 | Protel series PCB design edit software | Professional electronic circuit principle diagram, PCB graph editor output software |
02 | CAM350 computer aided manufacturing editing software | Transformation and input/output edit software of formats such as Gerber, Dxf |
03 | Nc Drills transformation output software | Industry standard drilling file format |
04 | Gerber transformation output control software | Industrial drawing professional format |
05 | Electronic circuit design multimedia video demo CD | Display circuit design basic rules and making process, equipment operation method and attentions |
06 | Electronic circuit design teaching materials | Rules and basic concept of electronic circuit design |
07 | Electronic circuit design practice instructions | Write to training project, provide electronic version, convenient for teachers to edit and use |
08 | Electronic circuit design training package | Including project, diagram, PCB figure, sealing, design rules, etc |
09 | Pcb training project group measures and teaching process wall chart | Develop experimental facilities, ensure that all students understand, master the technology and be familiar with the process |
10 | Supporting the equipment operation process teaching video, reflow soldering process video teaching CD | For students to observe, study, and make reference |
11 | Supporting training project suite, electronic version of instructions and demo courseware | Provide basic material for this platform |
