Optoelectronic Slip Ring

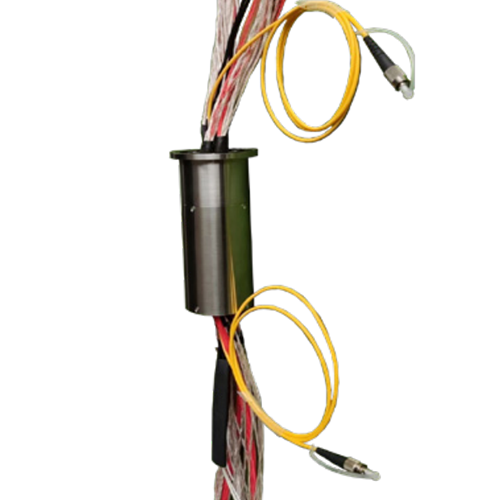

Our company has developed an optoelectronic slip ring for a certain unmanned combat vehicle, used for signal and power transmission between the vehicle body and the turret. This sl ip ring integrates power channels, signal channels, optical f ibers, and RF four transmission media, with dimensions of only ∅ 62×150.9mm under integrated design.
Main Technical Performance
Transmission Type | Number of Channels, Parameters |
Power Channels | 10 channels 8A, 14 channels 3A |
Signal Channels | 54 channels |
Fiber Optic | 1 channel single-mode optical fiber |
RF | RF ring 3 channels |
Dimensions | ∅ 62×150.9mm |
