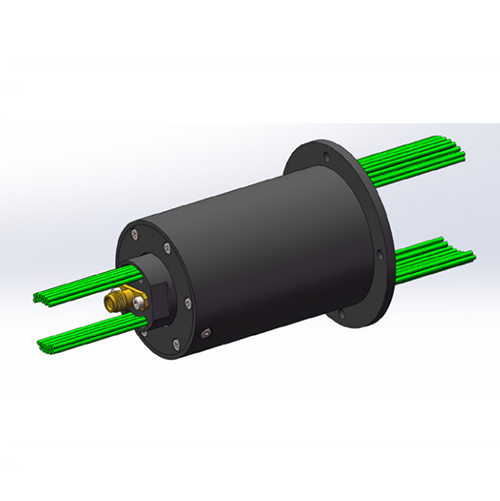

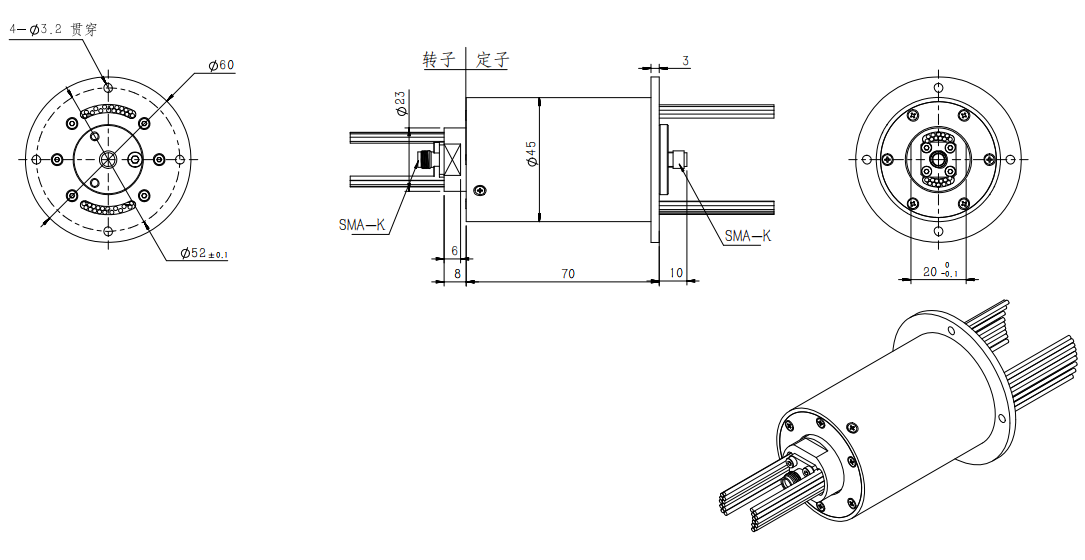

H1DX45 RF Conductive Slip Ring

Product Introduction

The H1DX45 RF slip ring integrates 1 RF signal channel and multiple electrical power or signal channels. The RF slip ring and electrical slip ring are highly integrated, with an outer diameter of just 45mm. Its compact structure makes it easy to install and integrate.

Main Technical Performance

Electrical Parameters
Channels	1 ～ 30	Wire Specification	Selected according to 10A/mm² standard
Operating Voltage	0 ～ 380VAC	Lead Wire Length	500mm/500mm or specified
Operating Current	5A (Parallel to achieve larger current)	Signal Type	Ethernet, USB 2.0, SDI video signals, serial signals, etc.
Contact Resistance Variation	≤ 10mΩ
Insulation Resistance	≥ 500MΩ @ 500VDC
Dielectric Strength	500VAC @ 50Hz, 60s
Electrical Contact Material	Precious Metal
Wire Type	AF Aviation Wire or Dedicated Signal Wire
RF Parameters
RF Interface	SMA-F (50Ω)	Peak Power	1500w
Working Frequency	DC-18GHz	Average Power	30W
VSWR	≤ 1.6	Housing Material	Stainless Steel
VSWR fluctuation value	≤ 0.1
Insertion Loss	≤ 1.0dB
Insertion loss fluctuation	≤ 0.1dB

Mechanical Parameters
Working Temperature	-40 ～ 75℃
Storage temperature	-50 ～ 80℃
Vibration and Shock Standard	GJB150 Land Mobile
Protection Class	IP51
Maximum Working Speed	200rpm
Service Life	≥ 10 million revolutions
