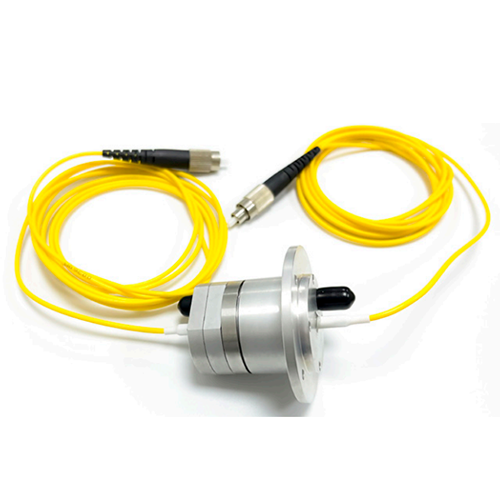

FHRS Fiber-Optic RF Slip Ring
Product Introduction
The FHRS series fiber optic RF combination slip ring contains 1 channel of fiber optic signal and 1 channel of RF signal . The fiber optic module and RF module are highly integrated, with an outer diameter of only 32mm and a main body length of 56.2mm. The structure is compact and convenient for integration and installation with electrical slip rings.
Main Technical Performance
Optical Parameters | |||
Indicator Name | Value | ||
Working Wavelength | 1310/1550(SM) ；850/1310(MM) | ||
Insertion Loss (room temperature) | ≤ 1.5dB | ||
Insertion Loss Fluctuation | ≤ 0.7dB | ||
Return Loss | ≥ 40dB(SM) | ||
Withstand Optical Power | ≤ 23dBm | ||
Tail cable withstand tension | ≤ 12N | ||
RF Parameters | |||
RF Interface | SMA-F(50Ω) | Peak Power | 1000W |
Working Frequency | DC-6GHz | Average Power | 10W |
VSWR | ≤ 1.5 | Phase Change Value | ≤ 4° |
VSWR fluctuation value | ≤ 0.1 | Housing Material | Aluminum Alloy |
Insertion Loss | ≤ 0.5dB | Surface Treatment | Conductive Oxidation |
Insertion loss fluctuation | ≤ 0.1dB | ||
Mechanical Parameters | |||
Working Temperature | 20 ～ 60℃ (-40 ～ 80℃ ) | ||
Storage temperature | -45 ～ 85℃ | ||
Weight (excluding tail cables and connectors) | about 150g | ||
Vibration and Shock Standard | GJB150 Land Mobile | ||
Protection Class | IP51 | ||
Maximum Working Speed | 60rpm | ||
Service Life | ≥ 5 million revolutions | ||

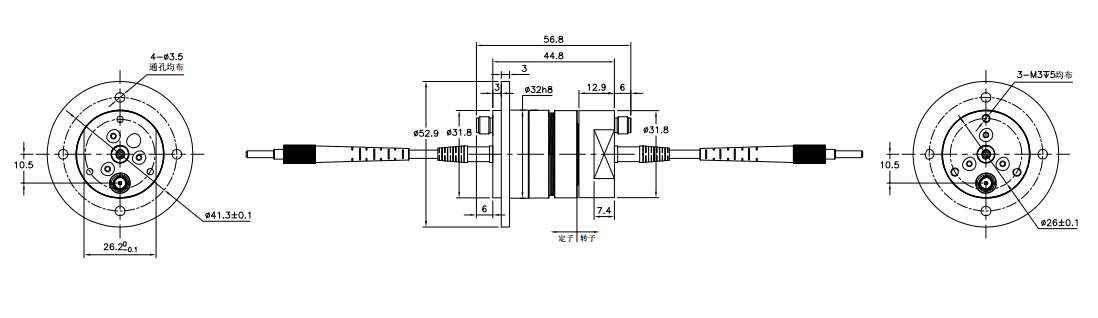

FHRS Dimensions
