Airborne Slip Rings

Product Introduction

Aircraft-mounted slip rings are commonly used in systems such as electro-optical pods and helicopter rotors. This type of environment typically requires slip ring products to be lightweight and compact in design, with special considerations for insulation performance degradation at low air pressure.

Typical Applications

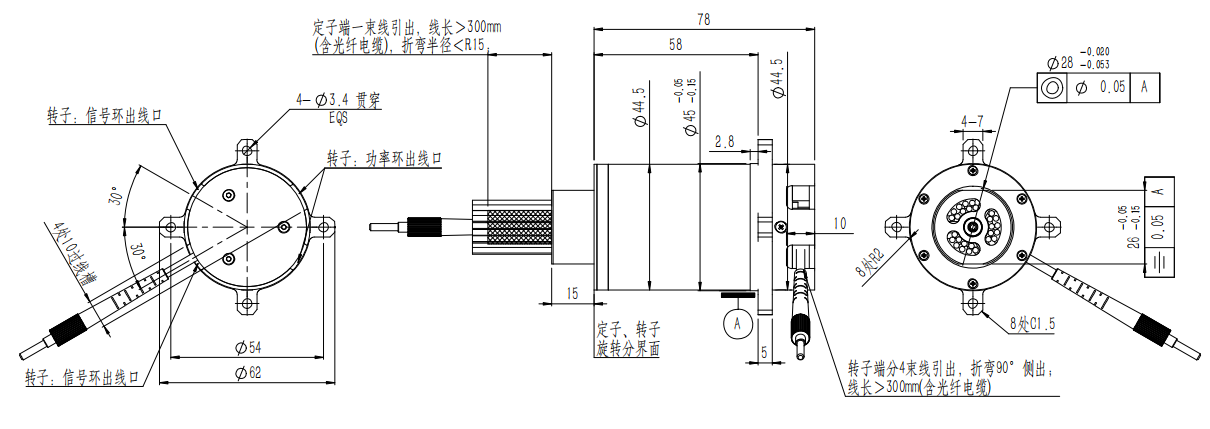

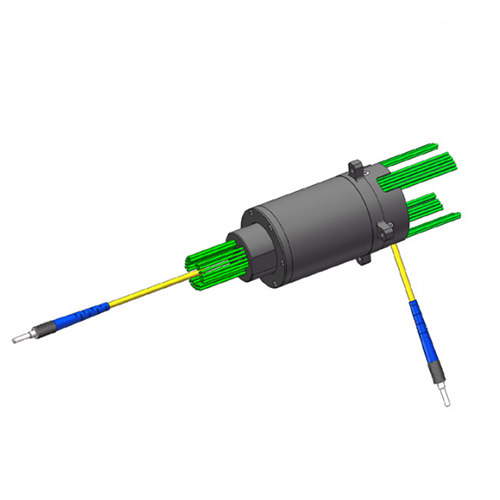

Our company produces a certain model of electro-optical pod slip ring, which includes 10 channels of 5A power ring, 22 channels of signal ring, and an integrated single-channel optical fiber slip ring. The product has a diameter of 45mm and a total length of 93mm.

Main Technical Performance

Line number	Electrical load	Define	Cable model specifications.		Note.
Fiber optic signal
Fiber optic signal		fiber optic rotary joint: wavelength range 650-1650nm, insertion loss <1.5dB; connector type FC/PC.			Single mode single channel
1	+60VDC/10A	Motor +	AF-250-0.5mm2 shielded cable	1 and 2 in parallel	Servo power supply.
2			AF-250-0.5mm2 shielded cable
3	+60VDC 地 /10A	Motor -	AF-250-0.5mm2 shielded cable	3 and 4 in parallel
4			AF-250-0.5mm2 shielded cable
5	Motor shield layer ground (5A)		External 1, 2, 3, 4 ring shield layer, unnumbered
Sensor power group
6	12VDC/5A	+12V	AF-250-0.5mm²		Sensor power
7		+12V ground	AF-250-0.5mm²
8	28VDC/5A	+28V	AF-250-0.5mm²		Sensor power
9		+28V ground	AF-250-0.5mm²
10	28VDC/3A	+28V	AF-250-0.35mm²		Sensor power
11		+28V ground	AF-250-0.35mmm²
12	28VDC/3A	+28V	AF-250-0.35mm²		Sensor power
13		+28V ground	AF-250-0.35mm²
14	5VDC/2A	+5V	AF-250-0.35mm²		Sensor power
15		+5V ground	AF-250-0.35mm²
16	28VDC/5A	28VDC	AF-250-0.5mm²		Process backup

Communication signal group
17	2A	TX_D1+	AFPF-250-2*0.12mm2 twisted shielded wire	Ethernet port
18		TX_D1-
19		RX_D2+	AFPF-250-2*0.12mm2 twisted shielded wire
20		RX_D2-
21	2A	RSS422_T+	AFPF-250-2*0.12mm2 twisted shielded wire	Asynchronous serial port
22		RSS422_T-
23		RSS422_R+	AFPF-250-2*0.12mm2 twisted shielded wire
24		RSS422_R-
25	2A	RSS422_T+	AFPF-250-2*0.12mm2 twisted shielded wire	Asynchronous serial port
26		RSS422_T-
27	2A	RSS422_T+	AFPF-250-2*0.12mm2 twisted shielded wire	Asynchronous serial port
28		RSS422_T-
29	2A	RSS422_R+	AFPF-250-2*0.12mm2 twisted shielded wire	Synchronous or asynchronous serial port (customer standby)
30		RSS422_R-
31	2A	RSS422_T+	AFPF-250-2*0.12mm2 twisted shielded wire	Synchronous or asynchronous serial port (customer standby)
32		RSS422_T-
Note.	(1) The matching cable for the slip ring adopts multi-strand silver-plated copper high-temperature resistant installation wire;
	(2) The motor shield layer is insulated and protected with heat shrink tubing, maintaining high insulation with the housing.
