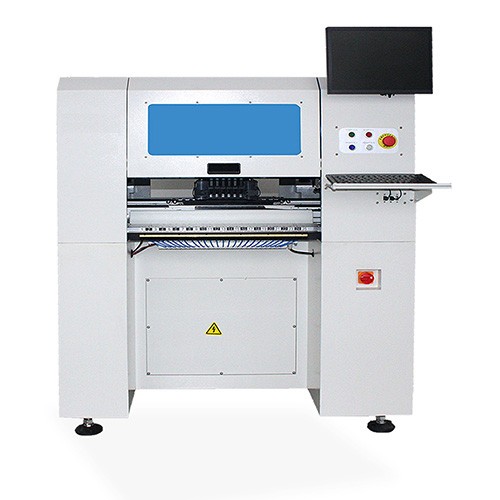

Model: SUNY-751
Mounting Head Quantity: 6
Description：
SUNY-751 has push pin to support PCB while placement, avoiding deformation of the PCB, especially the panels.
Specification
Dimensions | 1280mm(L)×1190mm(W)×1470mm(H) |
Weight | 540kg |
Power Supply | AC220V (50Hz, single phase), 2.8kW |
Air Supply | 0.5MPa ~0.7MPa |
Vacuum Generation | Japan PISCO Vacuum generator |
Mounting Head Quantity | 6 |
Mounting Speed | 15000cph (optimal) |
Mounting Accuracy | ±50μm@μ±3σ/chip |
Control Accuracy | 5μm |
Component Height | 12mm |
Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
PCB Thickness | 0.6mm~3.5mm |
PCB Size | 400mm(L)×350mm(W) |
PCB Conveying | 3-section-rail automatic conveying， PCB support |
Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
Drive System | X&Y axis driven by servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
Transmission System | Ground Ball screw + linear guide (Y axis with double screws) |
Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
Vision System | Snapshot camera×6 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 |
