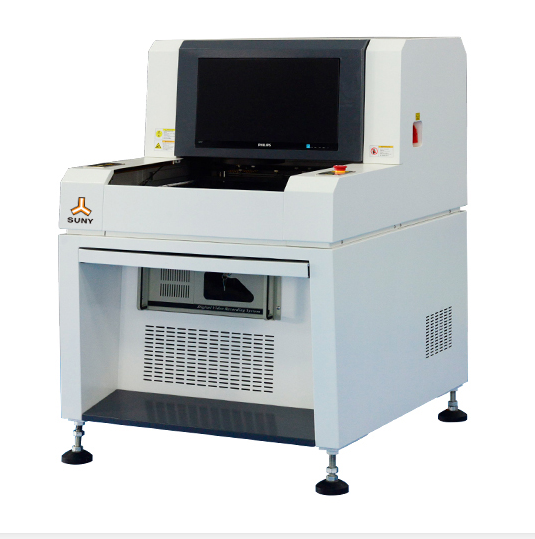

Model: SUNY-AOI600
PCB Size(X*Y): 25×25mm – 340×480mm
Professional PCB making machine
Product Feature:
l Special for small and medium-sized enterprises, efficient, muItifunctionaI, cost-effective.
l Novel structure and tight security.
l Simple programming and debug mode, easy to operate.
l Automatically identify PCB,and automatically identify if the board is put on 180°reverse side.
l Simultaneous inspection for multi-boards and inspection shift of 2 sides of boar (components top and bottom) improves the inspection efficiency.
l Smart camera barcodes identify system.(The camera can identify single-dimensional barcode and data matrix barcode).
l Professional SPC analysis system,monitoring and analysis the quality of products in real time.
l Multiple machine monitoring system,can know well of all production lines’ condition.
l Remote programming and debugging make the software is more easy and convent.
Product Software:
l Simple test results report: The test report contains some contents of spc, according to the real test case shows the ratio of NG and distribution, real-times show the quantity of the sting boards, parts per million, false-operator rate and other relevant information, so the operator is easy to know the detail of the production line.
l Professional spc system: Professional spc analysis report to macroscopic readjustment and control the production line, reduce the incidence and raise productivity.
Product Parameters:
| CATEGORY | ITEM | SPECIFICATION | |
| RECOGNITION SYSTEM | INSPECTION | Using multiple algorithms synthetically such as WIDM,Color Image contrast technology,Color extracting technology, similarity, two-value handling technology, OCR/OCV and so on. | |
| CAMERA | Color CCD camera: 12/15/20μm (optional) | ||
| LAMP-SOURSE | Ring RGB LED lamp-house | ||
| IMAGE PROCESSING SPEED | 0201 CHIP | <10ms | |
| PER-IMAGE TIME | <170ms | ||
| INSPECTION ITEMS | PASTE PRINTIG DEFECTS | Misaligned, overflow, insufficient, pasting open, stain | |
| COMPONENT DEFECTS | Missing, misaligned, skewed, tombstone, billboard, overturned, reversed polarity, wrong, damaged | ||
| SOLDER DEFECTS | Overflow, insufficient, short solder, stain | ||
| MECHANISM SYSTEM | ANTI STATIC MEASURES | Anti static electric outlet, anti static wreath | |
| PCB SIZE | 25×25mm – 340×480mm, can make bigger size according to clients’ demands | ||
| PCB THICKNESS | 0.5mm – 2.5mm | ||
| PCB WARP TOLERANCE | <2mm | ||
| COMPONENT HEIGHT | Top Side≤25mm Bottom Side≤70mm | ||
| MINIMUM SPACE PARTS | 01005 & 0.3mm pitch (15μm) | ||
| X, Y PLATFORM | Driver | AC server | |
| Orientation | <10um | ||
| Moving Speed | 70mm/s | ||
| SOFTWARE SYSTEM | OPERATION SYSTEM | Microsoft Windows XP Professional | |
| CONTROLLING & RECOGNIZING | Characteristics | WIDM, study OK template, automatically set template imaging, identify data and error numerical value | |
| Operation | Graphic programming, take along with chip library and get a inspection frame according with chip shape, accurate position, micron adjust, and easy programming | ||
| Mark | Mark Numbers | 0-2marks can be chosen | |
| Recognizing Speed | 0.5s/pcs | ||
| CONTROLLER | COMPUTER | CPU: Intel dual-core, MEMORY:4G, HARDDISK:500G, Solid State Disk: 120G | |
| DISPLAY | 22 inch TFT | ||
| OTHERS | MACHINE DIMENSIONS | 90cm×110cm×135cm | |
| WEIGHT | 450kg | ||
| POWER SUPPLY | AC220V±10%, Single phase 5A 50/60HZ, Power consumption 600W, along with a unbreak power supply of UPS | ||
