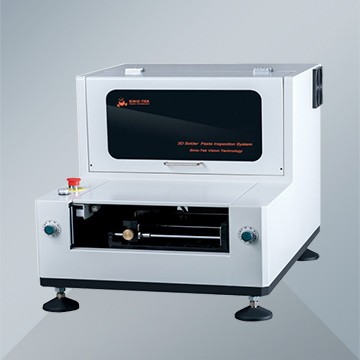

Off-line 3D Solder Paste Inspection for SMT Production Line

Model: SUNY-1010a
Maximum Loading PCB Size(X*Y):350x250mm
Professional PCB making machine

TECHNICAL PARAMETERS:

Inspection Principle: Programmable phase contour modulation measurement techniques(PSLM PMP)

Inspection type:Volume, area, height, XY offset, shape, etc.

Defect Types:shift, excessive solder, insufficient solder, offset, deformed shape, etc.

Smallest component: 0201.

Accuracy: XY=10 um,Height = 0.37 um.

Repeatability: height:≤1um (4 Sigma);volume/acreage:<1%(4 Sigma).

Maximum Loading PCB Size(X*Y):350x250mm.

Inspection Speed:1.5 SEC/FOV.

Fiducial Detection Time: 0.3sec/piece.

Maximum inspection height:±450um(±1200umOption).

Barcode function with traceability.

Access IMS system functions.

Operating System Support: Windows 7 Professional (64 bit).

Five-minute programming, one-click operation.

SPC process control.
