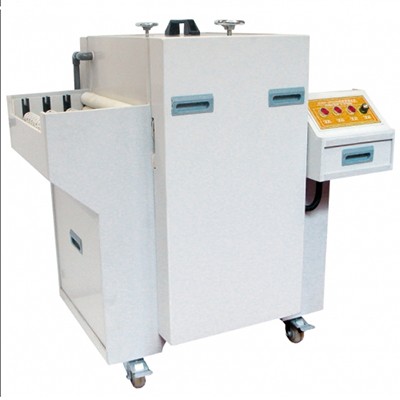

Circuit board polishing machine,PCB Buffing machine

Model: SUNY-ZPG300
Processing Size: width≤300mm length≥100mm
Professional PCB making machine

Specification
1. Product usage: automatic buffing processing of PCB surface;
2. Main functions: double screw adjusting wheel; electrical automatic control and water drainage; transmission guide rail dismantling, automatic transmission;
3. Self-contained trundle, convenient for movement and transportation;
4. Brush board method: single side, double side buffing;
5. Brush roller type: Φ110mm 320#
6. Brush board dimension: width≤300mm length≥100mm;
7. Brush board thickness: 0.5mm~6mm adjusted through the hand wheel;
8. Transmission motor: 90W, 0.2M~6M/min stepless speed regulation;
9. The bottom adopting universal caster wheel, convenient for moving and transportation;
10. Power supply: AC380V/50Hz;
11. Entire machine power: 0.75KW
12. Dimension: 750 mm×730 mm×820 mm;
13. Weight: 80 kg.
